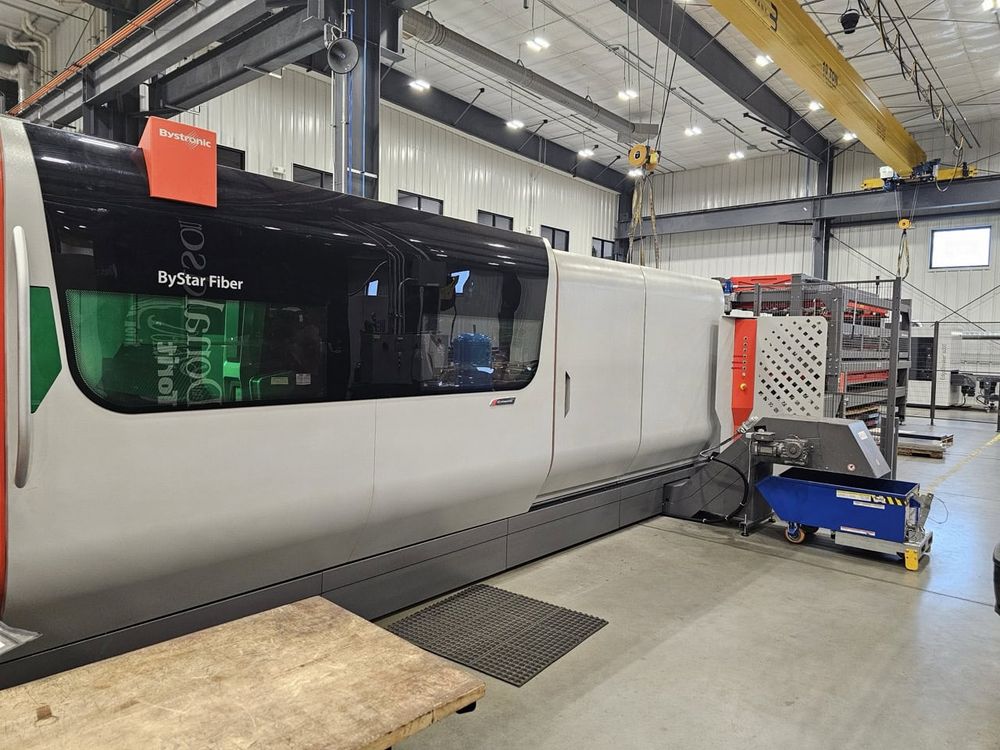

Bystronic BYSTAR CNC CONTROL

BYSTRONIC BYSTAR
2021

Laser power 15000 W
Power adjustment range 400–15000 W
Laser type fiber
Length 559 in
Width 248 in
Height 126 in
Nominal sheet size (X) 160 in
Nominal sheet size (Y) 80 in
Cutting area (X) 162 in
Cutting area (Y) 83 in
Cutting area (Z) 4 in
Max. positioning speed X/Y 4724 in/min
Max. simultaneous positioning speed 6681 in/min
Repeatability of positioning per ISO 230-2:2014 R 0.001 in
Position deviation per ISO 230-2:2014 M 0.002 in
Edge detection accuracy ±0.02 in
Max. workpiece weight 4190 lbs
Max. combined shuttle table load 7080 lbs
Machine weight 32000 lbs
Table change time 28 s
Steel max. thickness (standard) 1 in
Steel max. thickness (advanced) 1.96 in
Steel max. thickness with BeamShaper 1.18 in
Stainless steel max. thickness (standard) 1.57 in
Stainless steel max. thickness (advanced) 1.96 in
Aluminum max. thickness (standard) 1.57 in
Aluminum max. thickness (advanced) 1.96 in
Brass max. thickness 0.75 in
Copper max. thickness 0.75 in
System total electric consumption 27 kW
ByTrans extended automation system included
Low operating hours
Very clean condition
