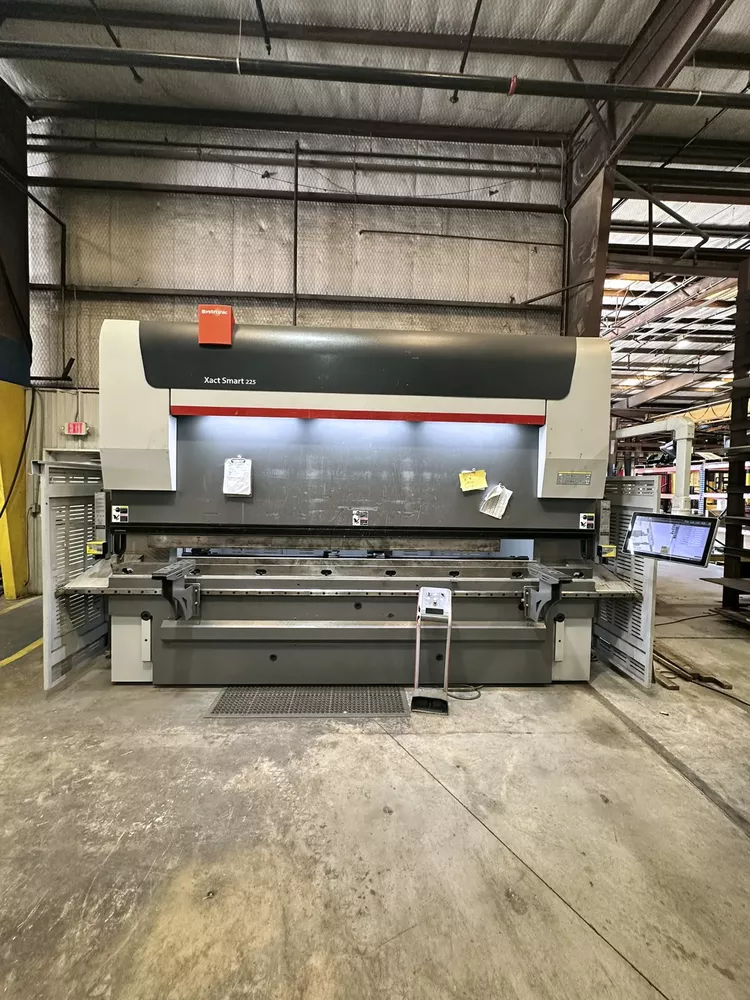

Bystronic Xact Smart 225/4100 225 Ton

Capacity 225 Ton
Overall length of bed 13.4'
Distance between housings 134.7"
Stroke 7.9"
Throat depth 15.8"
Open height 18.4"
Bending length 161.4"
Back gauge 5-Axis (X, X1, R, Z1, Z2)
Table width 2.37"
Rapid approach speed 5.5″/sec
Working speed 0.04-0.39″/sec
Return speed 4.5″/sec
Power requirements 480V, 3ph, 50 Hz
Approx. machine weight 36,297 lbs

Equipped With:
22" Full HD display with touch technology
Operator control with foot control
2 manual adjustable front supports
Fiessler laser curtains
Tooling included
Hydraulic crowning option
