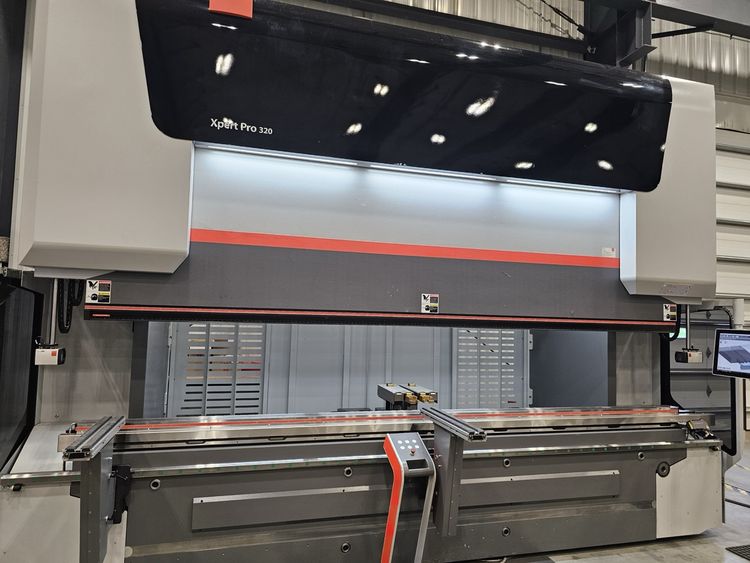

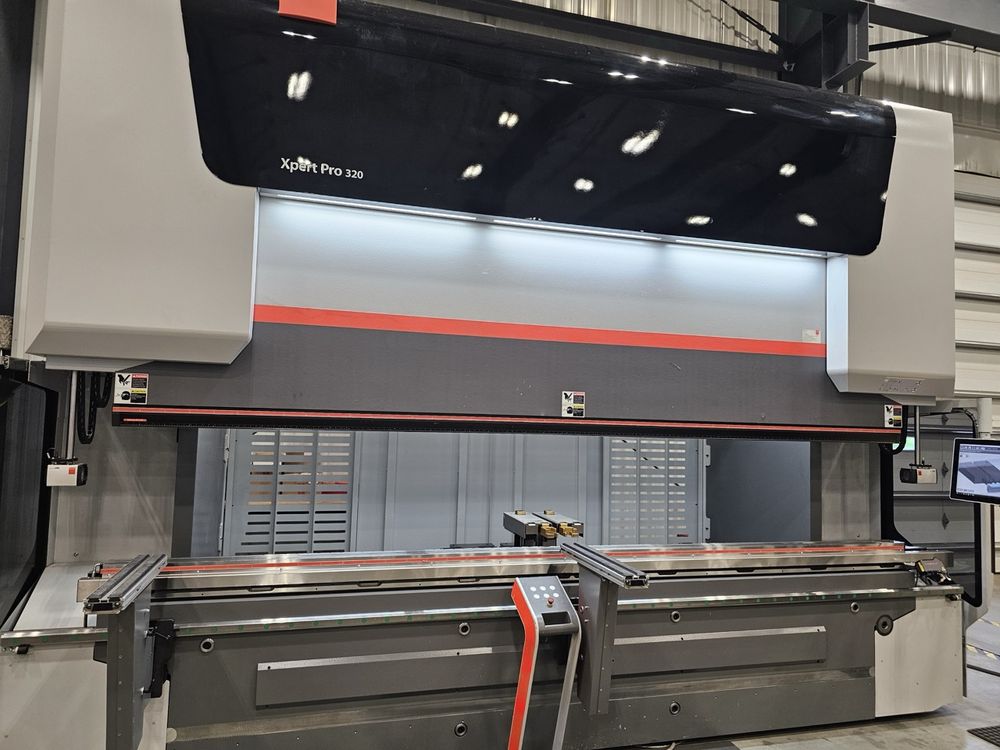

Bystronic Xpert Pro 320/4300 Extended 352 tons

Tonnage: 352 tons
Bending length: 169.3 in
Standard stroke: 17.7 in
Open height: 33.0 in

Distance between side frames: 147.7 in
Throat: 15.8 in
Table width: 2.4 in
Max. back gauge range X-axis: 41.4 in

X-axis travel: 23.7 in
X-axis speed: 1536 in/min
X-axis position accuracy: 0.0016 in
R-axis travel: 9.9 in
R-axis speed: 473 in/min
R-axis position accuracy: 0.004 in
Z-axis travel: 114 in
Z-axis speed: 3544 in/min
Z-axis speed for 6-axis: 2834.6 in/min
Z-axis position accuracy: 0.004 in
Y-position accuracy: 0.00016 in

Weight: 60186.2 lbs
Length approx.: 207.1 in
Width approx.: 78.7 in
Height approx.: 147.6 in
Proposed footprint approx.: 276 x 177 x 165.4 in
