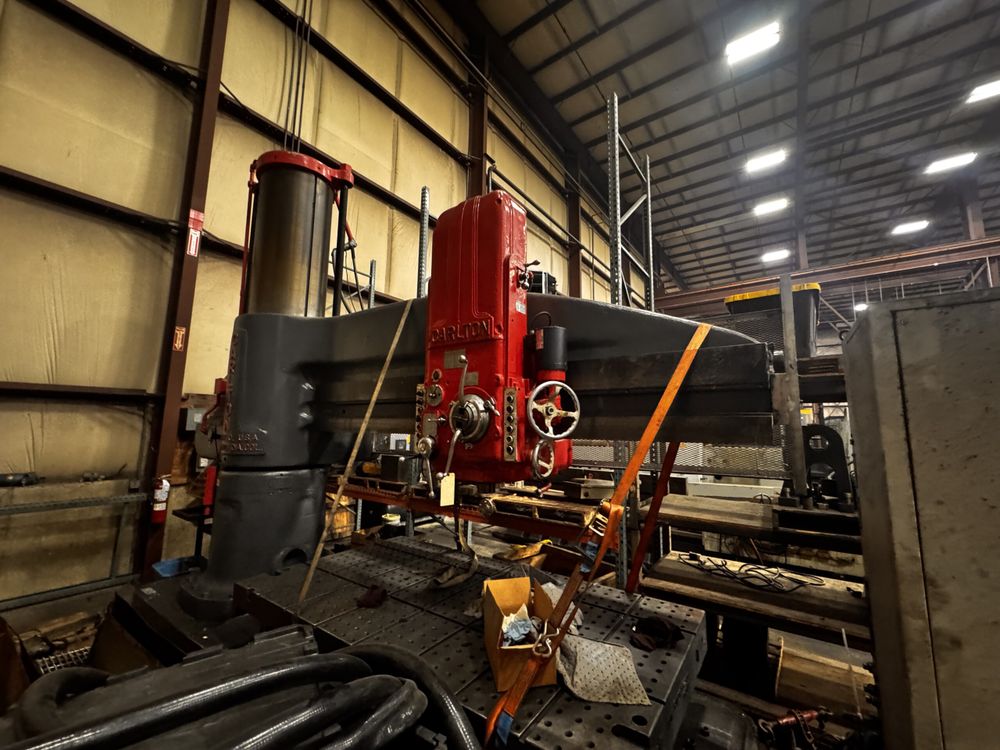

Carlton 10′ x 26″ Model 5A Radial Drill Variable

Distance from face of column to center of spindle: 10.0″–16.5″
Spindle radius: 34″–11′6″
Spindle to base distance: 10.5″–8′4″
Vertical travel of spindle in head: 24″
Spindle diameter: 4″
Morse taper in spindle: #6
Traverse of arm on column: 4′7.5″
Traverse of head on arm: 8′8″
Drills to center of circle: 20′
Swing of arm: 12′9″
Working surface of base: 4′9″ W x 10′6″ L
Height of base: 23″
Bearing of head on arm: 23.25″
Bearing of arm on column: 52″
Height over column cap: 14′5″
Maximum height over head: 14.8″

Plain box table – top working surface: 26″ x 40″
Plain box table – side working surface: 14″ x 40″
Plain box table – height: 20″
Universal table – top working surface: 28″ x 32″
Universal table – side working surface: 18″ x 28″
Universal table – height: 24″
Net weight of bare machine (less motor): 56,690 lbs
Shipping weight of bare machine (less motor): 56,690 lbs
Shipping weight of plain box table: 1,025 lbs
Shipping weight of universal table: 1,280 lbs
