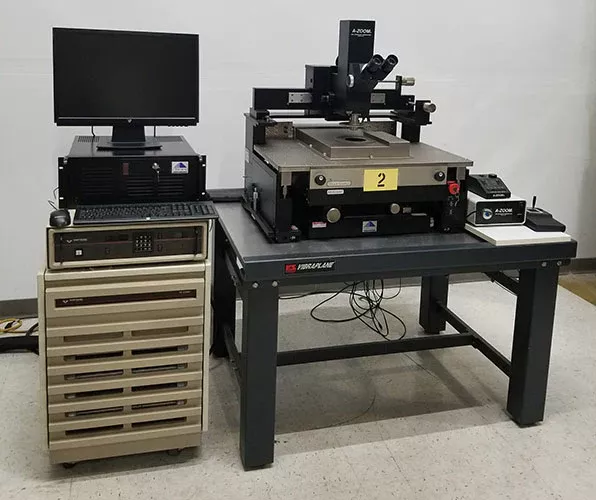

Cascade Microtech Summit 12000 Prober

Cascade Microtech Summit 12000 200mm Prober with
Attoguard Microchamber and -65°C to 200°C Shielded Chuck.
Cascade Microtech 12000 8 inch Semiautomatic Analytical Probe Station
with MicroChamber™ that isolates and shields the chuck from
external environment.
This eliminates electromagnetic and electrostatic interference.
You make measurements inside an integral, low noise,
shielded and light-tight chamber.
Whatever the application DC or RF device characterization,
wafer-level reliability, e-test, modeling, or yield enhancement,
the 12000 series probe stations assure best in the world measurements.

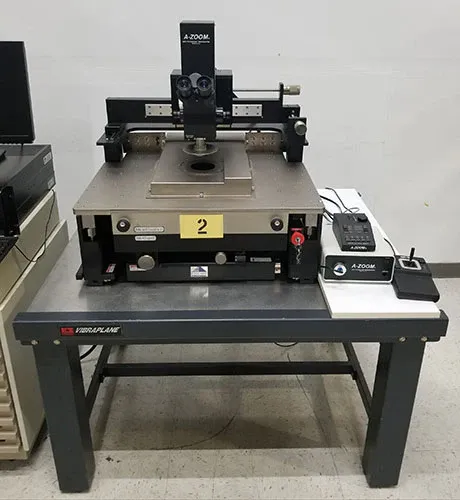

Sturdy optics bridge mount with 8” x 5” travel for analytical microscope.
Azoom microscope with single long working distance objective.
Includes vibration isolation table built just for this type of
prober. 200mm thermal chuck with Temptronic temperature controller
and a temperature range of -65°C to +200°C.
Easy to use graphical user interface guides you through prober tasks.
X-Y stage resolution 0.1 micron with an accuracy of +/- 2 micron.
Capable of handling up to eight vacuum mount, magnetic-mount or
fixed mount positioners.

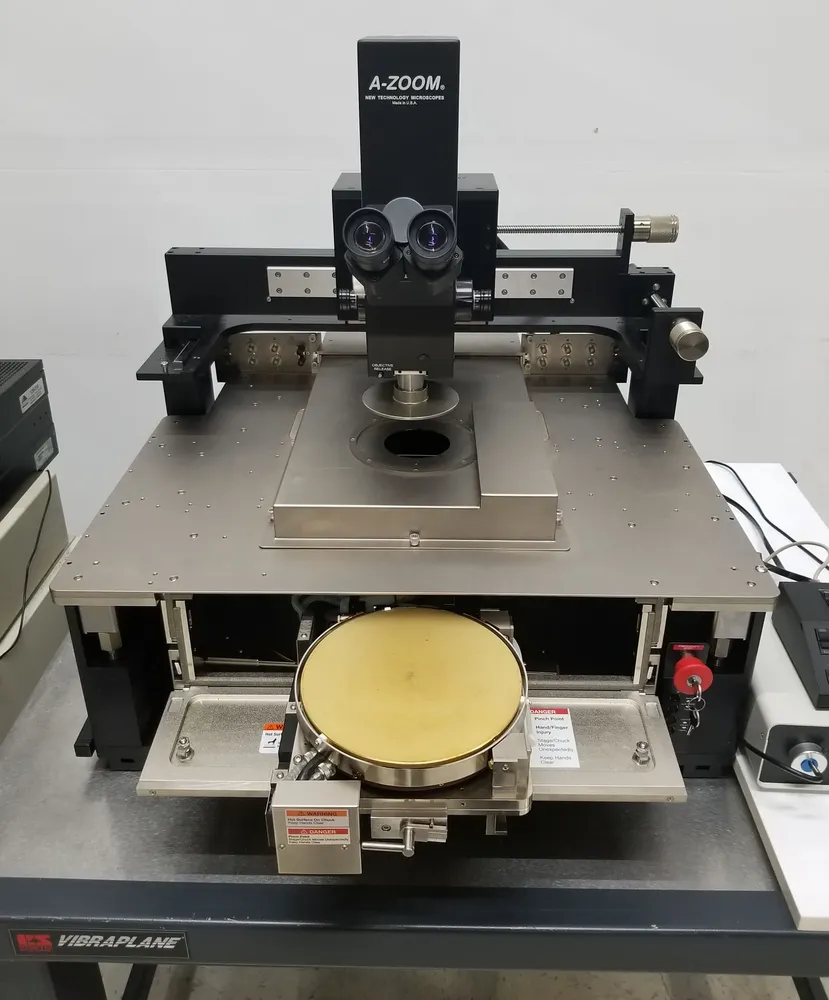

Safely load and unload DUTs with easy access and
locking roll out stage.
