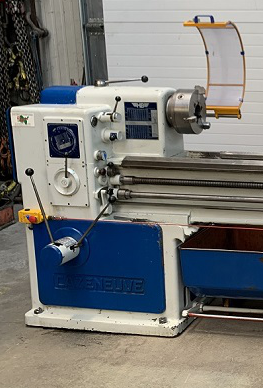

Cazeneuve Engine Lathe 1600 RPM HB 575
Ref :
2763037-3-MT
Condition :
Used
Manufacturer :
Cazeneuve
Type :
Engine Lathe
Spindle Speed :
1600 RPM
Model :
HB 575
Year(s) :
575
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Between centers 2000 mm
Max diameter on bed 575 mm
Max diameter over saddle 300 mm
Spindle bore diameter Ø 51 mm
Spindle speed 20–1600 RPM
Turret Multifix
Chuck 3-jaws chuck Ø 250 mm
Spindle motor 8.8 kW
Threadings metric + Whitworth
Tailstock CM5
Scale 2 axes
Equipped with lubricant pump
Equipped with 3-points fixed steady max Ø 160 mm
Voltage 380 V
Dimensions 3500 x 1500 x 1800 mm
Weight approx 3 T
