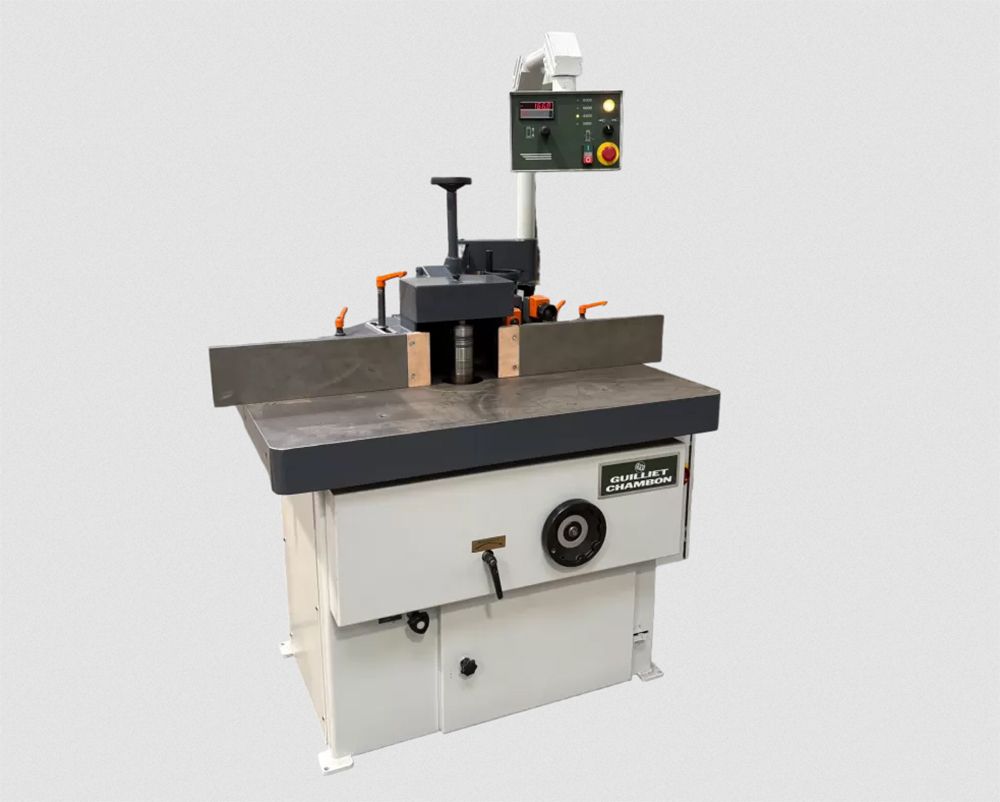

Chambon M3

SPINNING TOP CAPABILITIES :
- 50 mm diameter shaft with set of bushings
Usable length 200 mm
Shaft stroke 230mm
Tools (through the table): Ø 300 mm
Maximum tool diameter for guide work: 250 mm
- Rotation speeds: 8000 / 6000 / 4500 / 3000 rpm
To install a trainer: please contact us.

MACHINE COMPONENTS:
- Robust welded steel frame
- Cast iron table 1200 x 800 mm
- Rear guide, retractable cast iron cheeks on stem
- Electric raising and lowering, micrometric adjustment via steering wheel
- Control panel on a gantry

OTHER FEATURES:
- Power supply: 380 V, Three-phase 50 Hz
- Automatic star-delta start
- Spindle moulder motor power: 5.5 kW, max current 10.9 A
- Dust extraction: 2 x Ø 120 mm

- Self-braking motor
- Lockable switch, emergency stop button
- A bridge protector will be installed

Dimensions (WxDxH): 1250 x 950 x 1950 mm
Weight: 450 kg
