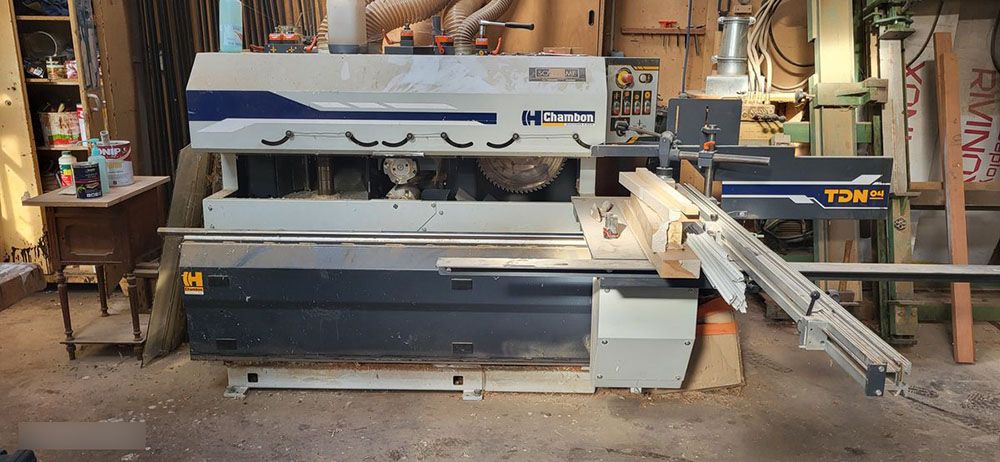

Chambon TDN-04 Tenoner with Saw, Two Lathes, and Spindle

Total 14kW
Saw, Two Lathes, Spindle.

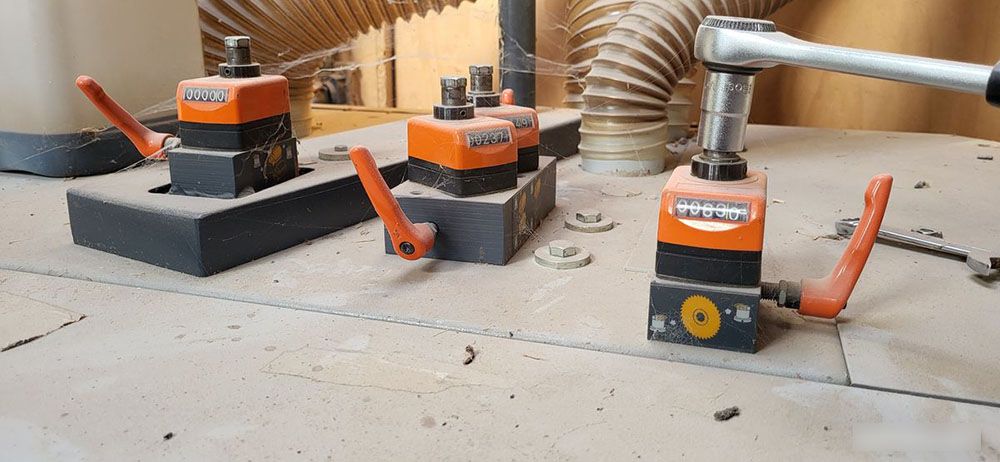

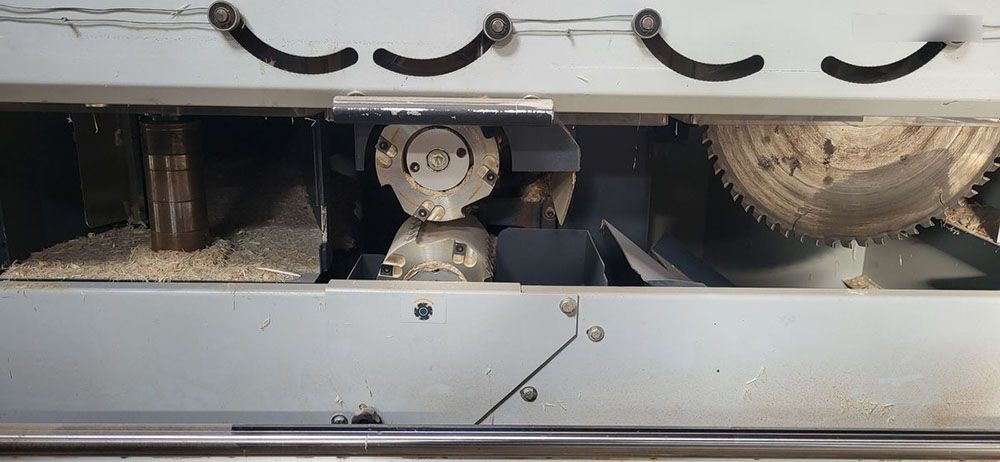

With the cover open, all tools are accessible.

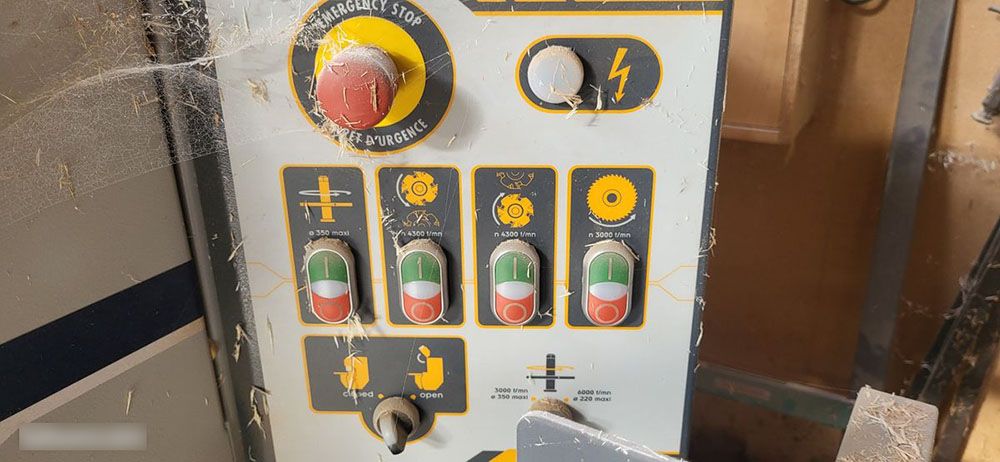

Ergonomics Manual Press

Technical Description:
Saw:
Maximum blade diameter: 415 mm
Saw arbor diameter: 30 mm
Horizontal stroke: 150 mm
Cutting height: 150 mm
Motor power (hp): 4

Unwinders:
Tool diameter: 140 mm
Arbor diameter: 40 mm
Maximum tenon length: 150 mm
Maximum clearance between unwinders: 150 mm
Rotation speed (rpm): 4900
Motor power (hp): 2x4
Upper unwinder vertical stroke: 150 mm
Upper unwinder horizontal stroke: -40 to +50 mm
Lower unwinder vertical stroke: -1 to 60 mm

Moulder:
Maximum tool diameter: 350 mm
Arbor diameter: 50 mm
Useful length: 170 mm
Vertical stroke: 270 mm
Horizontal stroke: 150 mm
2 rotation speeds (rpm) 3000 and 6000
Engine power (hp) 5.5

Movable table:
Dimensions 900 x 500 mm
Load capacity in front of the saw 400 mm
Adjustable guide for stop doors (-45° to +45°) 2500 mm
Suction ø 80, ø 120, 2 x ø 150
Suction requirement 4000 m3/h ø 20m/s
Sound level 77 dBa
Dimensions 2600 mm x 2320 mm x 1600 mm
Weight 1050 kg
