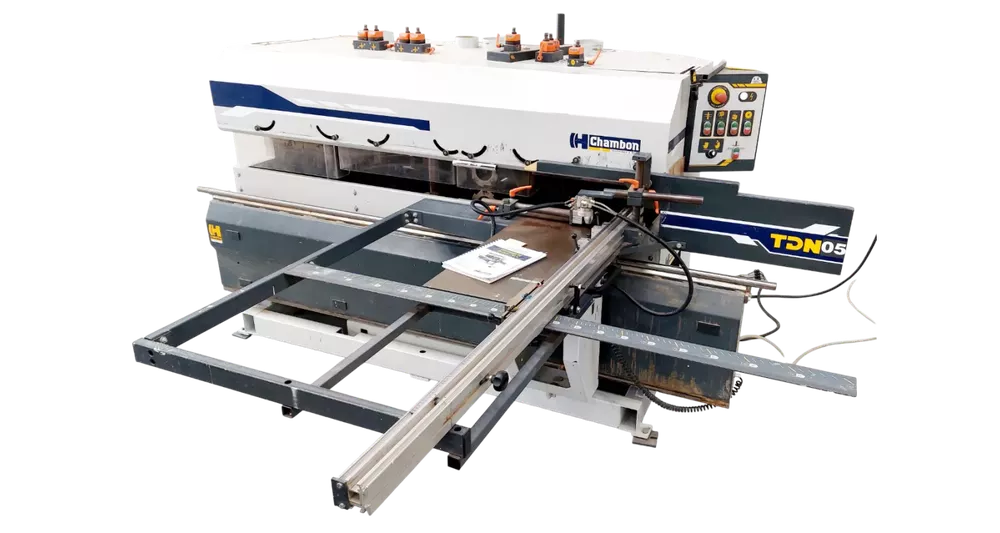

Chambon TDN 05 TENONING MACHINE

MACHINING CAPABILITIES :
- Maximum wood section (thickness x width): 150 x 400 mm with end cut
Tenon thickness 5 to 150mm
Maximum tenon depth 150 mm

MACHINE COMPONENTS:
Table:
- Cast iron table, usable width 400 mm with support frame (W x D): 880 x 1500 mm
- Manual movement on ball bushing slides
- 2 pneumatic clamps for holding the wood: horizontal and vertical
- 2500 mm telescopic graduated ruler with double stop
+ additional stop at 6 records
Ruler orientation: 45° to -45°
Sawing:
- Power 3 kW (4.08 hp), blade speed 3000 rpm
- Clearance in front of the saw: 400 mm
With Laser Faith Line
- Saw blade Ø 400 mm Bore Ø30 mm
Carbide-tipped top/bottom unwinders :
- Power 2 x 3kW (2 x 4 hp), rotation speed 4900 rpm
- Tool holders Ø140 mm bore Ø40 mm, length 150 mm
Carbide inserts: mm
- Independent spacing, tenon adjustment
lower: vertical stroke of 5 to 60 mm
upper: vertical travel of 150 mm and transverse travel of +40 to -150 mm
2 Spinning Tops:
- Shaft Ø50 mm Length 300 mm
- 2 x 4kW (2 x 5.44 hp), rotation speed 3000 rpm each
- Vertical stroke 270 mm and lateral stroke 170 mm
- Maximum tool diameter 350 mm depending on speed

OTHER TECHNICAL SPECIFICATIONS:
- General power supply 400V, three-phase, 50 Hz
- Installed power 17 kW, 26A IN line required
- Digital counters (Siko) for manual adjustment of operations
- Pneumatic supply: bar Operating pressure: bar Consumption: Nl/min
- Suction Inlets (mm):
Ø75 int /saw,
Ø145 + 115 int. /unwinders
2xØ145 int /spinning tops
- Recommended flow rate for the installation: 5000 m³/h. Minimum speed: 20 m/sec.
- CE marking, Lockable disconnect switch, Emergency stop buttons, Brake motors, Guard according to table

Dimensions: 2.60 x 2.35 x h.1.60 m
Weight: 1300 kg
