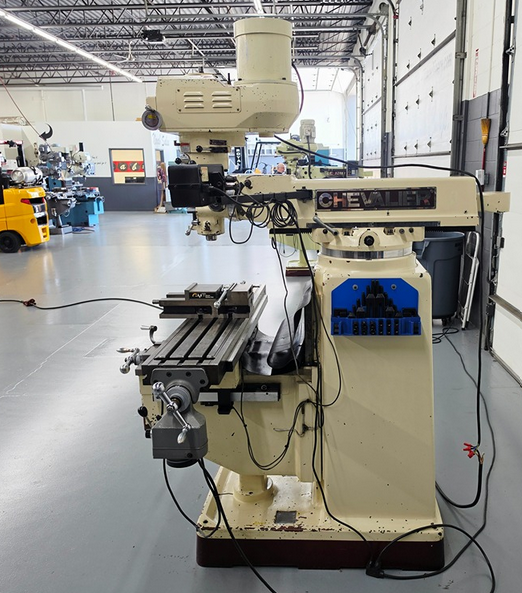

Chevalier FM-3VKH Vertical 4500 RPM

Ref : 2802219-3-AW

Condition : Used

Manufacturer : Chevalier

Model : FM-3VKH

Type : Vertical

Spindle Speed : 4500 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X Travel: 32-3/4"
Y Travel: 16-1/8"
Quill Travel: 5"
Knee Travel: 15-1/2"
Spindle Speed: 50 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Spindle Nose to Table: 0" - 17-1/4"
Table Size: 10" x 50"
Weight: 3,100 lbs
Weight (Approx.): 3,400 lbs
Dimensions: 65" x 63" x 88"
230V / 3 Phase

Features:
Anilam 2-Axis DRO
X-Axis Power Feed
3 HP Motor
Box Ways
6" Vise
New Hold Down Set
New R8 Collet Set
R8 Holder Set
One Shot Lubrication
Servo Power X Feed
