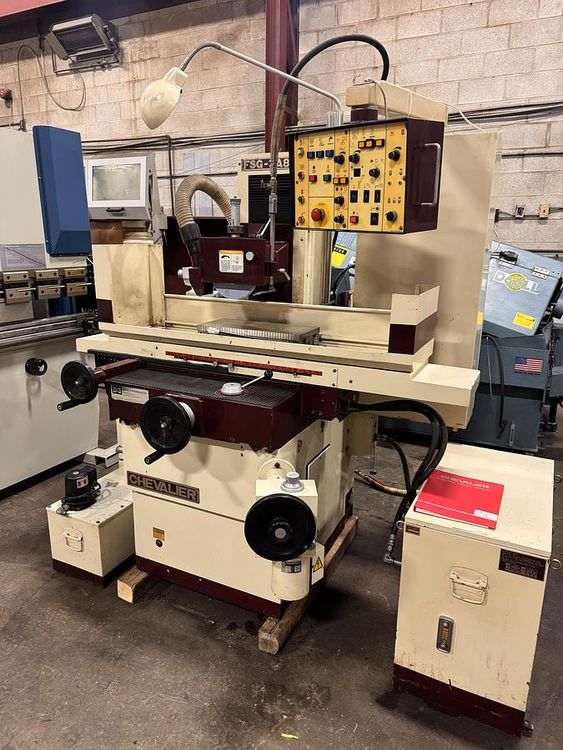

Chevalier FSG-3A818

Table Size: 8" x 18"
Maximum Grinding Length: 18"
Maximum Grinding Width: 8"
Maximum Distance from Table Surface to Spindle Centerline: 18"
Longitudinal Table Movement - Hydraulic: 19-3/4"
Maximum Manual Travel: 21"
Cross Traverse Travel - Max Automatic: 9"
Maximum Manual Traverse: 9-1/2"
Wheel Head Vertical Infeed - Automatic: 0.0001" - 0.002"
Microfeed per Revolution: 0.0001"
Grinding Spindle Drive: 60 Hz / 3450 RPM
Spindle Drive Power Rating: 2 HP
Standard Grinding Wheel Size: 8" x 1/2" x 1-1/4"
Approx. Weight: 2,700 lbs
Electrics: 575 V / 3 PH / 60 Hz

8" x 18" Manual Magnetic Chuck
Incremental Downfeed
Hydraulic Tank
Coolant Tank
Dust Collector
