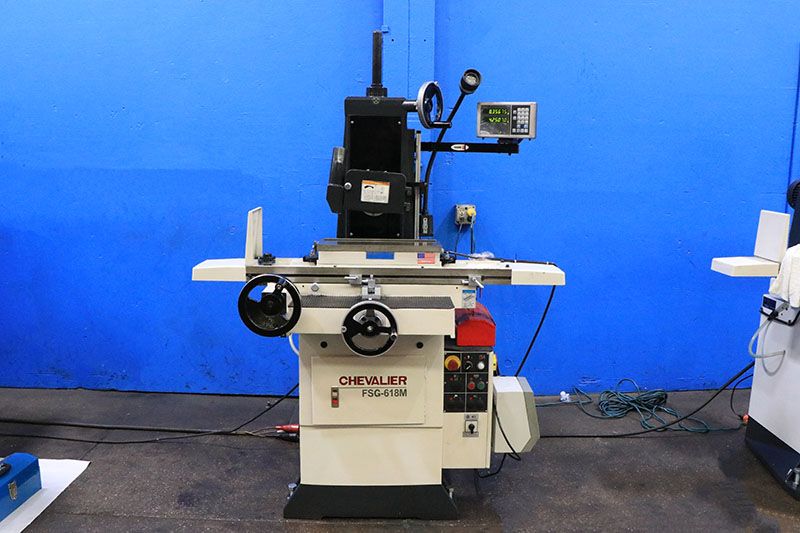

Chevalier FSG-618M

Maximum grinding length: 18"
Maximum grinding width: 6"
Maximum table travel longitudinal: 19"
Maximum table travel cross: 7"
Maximum distance from table working surface to spindle center: 18"
Cross handwheel graduation: 0.0005"
Cross handwheel per revolution: 0.100"
Downfeed handwheel graduation: 0.0001"
Vertical handwheel per revolution: 0.050"
Spindle speed: 3450 RPM
Wheel size: 8" x 1/2" x 1-1/4"
Spindle motor power: 2 HP
Electrical: 3/60/230-460 V
Approximate weight: 1500 lbs
Approximate dimensions: 41" W x 47" D x 76" H
Meehanite cast iron construction
Hardened and ground table guideways with steel ball system
Double V guideways laminated with Turcite-B for saddle travel
Automatic lubrication system for leadscrews and ways
Roller bearing table
Fagor Innova 2-axis digital readout system
Electromagnetic chuck system (O.S. Walker LBP fine division)
Variable hold magnetic chuck control (O.S. Walker Smart Series Neutrofier)
Wheel cover with dust inlet
All original paint finish condition noted as like new
