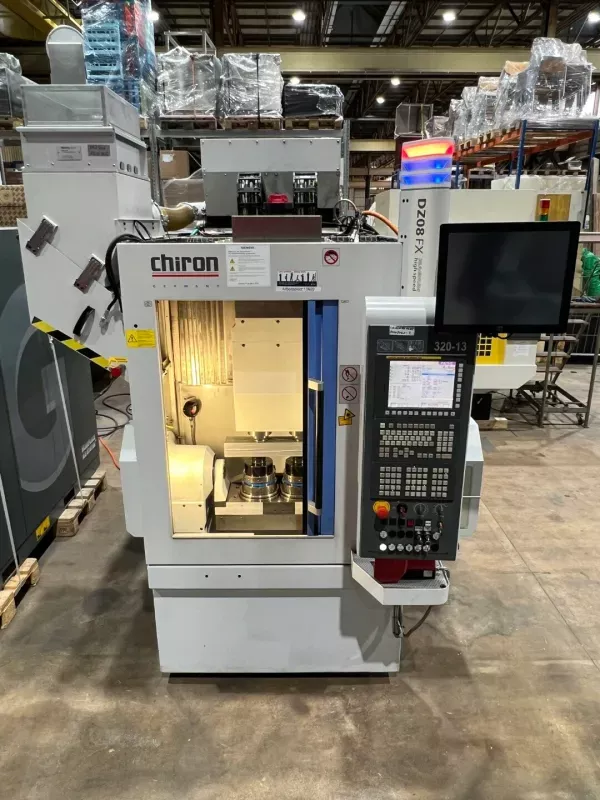

Chiron DZ 08 FX 3 Axis

X-axis travel: 450 mm
Y-axis travel: 270 mm
Z-axis travel: 310 mm
Spindle speed: 18,000 rpm
Spindle clamping set: HSK-A40
Spindle lubrication: Fat
Swivel axis angle: ±100°
Swivel axis repeatability: ±5''
Swivel axis position measuring system: ECN 225
Swivel axis max. transmittable torque: 440 Nm
Swivel axis speed: 100 rpm
Swivel axis holding torque: 410 Nm
NC rotary table faceplate diameter: 245 mm
NC rotary table thread and bore pattern: M16 x 15
NC rotary table repeatability: 5''
NC rotary table position measuring system: ECN 225
NC rotary table max. transmittable torque: 180 Nm
NC rotary table holding torque: 410 Nm
NC rotary table max. load capacity: 80 kg
NC rotary table speed: 200 rpm
Machine weight: 4500 kg

Chiron twin-spindle machining center
Absolent oil mist separator
High-pressure system
Chip conveyor
Oil cooler
Measuring probe
Set of HSK-40 tool holders
Complete operational documentation
