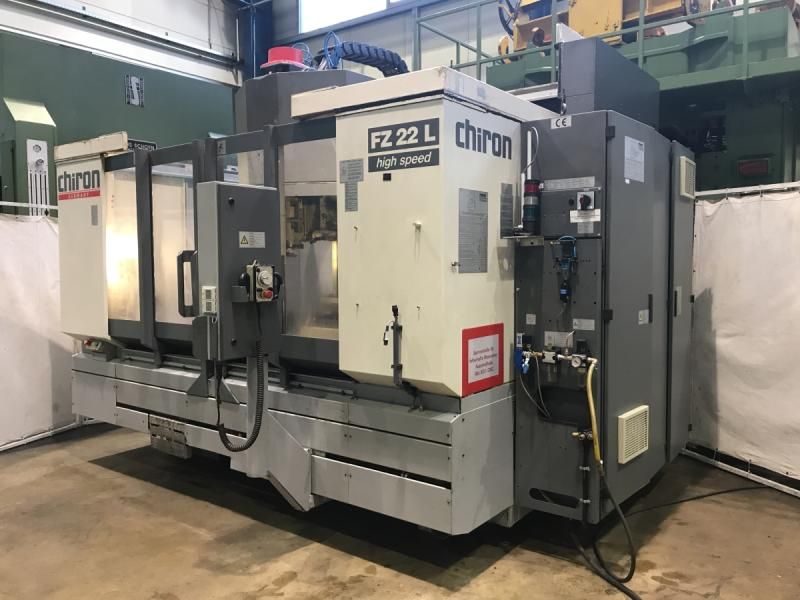

Chiron FZ 22 L high speed 3 Axis

X-axis travel 2000 mm
Y-axis travel 520 mm
Z-axis travel 630 mm
Table size 2700 × 570 mm
Table load 525 kg per meter
Spindle nose to table 190–820 mm
Drilling capacity 35 mm
Tapping capacity M27
Tool diameter 75 mm
Tool diameter with free adjacent slots 105 mm
Tool change time tool-to-tool 2.0 sec
Tool change time chip-to-chip 4.8 sec
Spindle speed max. 10,500 rpm
Main spindle drive power max. 18.5 kW
Tool holder SK40 (DIN 69871)
Power connection 400 V, 50 Hz, 32 kVA
Machine dimensions (L×W×H) 4600 × 2470 × 2950 mm
Machine weight 7.2 t

Equipped With
CNC control FANUC Series 21-M
40-position tool changer
Internal coolant supply through spindle (IKZ)
Coolant unit with side-mounted chip conveyor
Electronic handwheel
Indirect measuring system
Protective cabin with sliding door
Work area lighting
Pallet machining with two work areas (partition missing)
Machine in good condition, main spindle defective
