Cincinnati 230AS X 14 230 TON X 14’
AMERICA North (USA-Canada-Mexico)

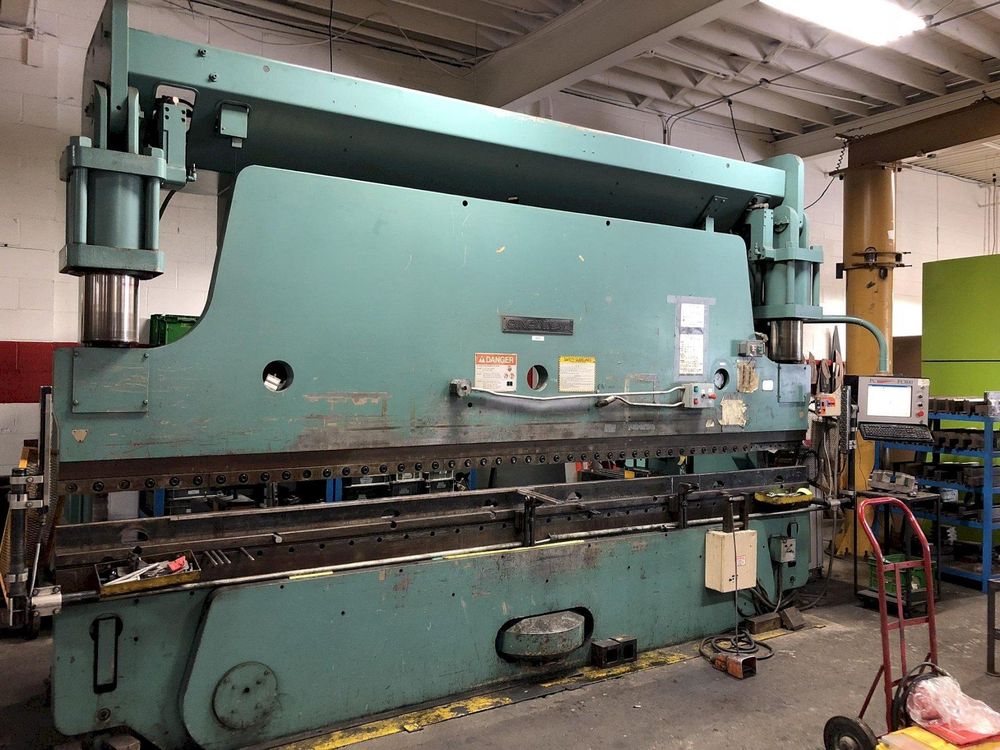

Cincinnati 230AS X 14
New 1990
Hydraulic Press Brake with Upgraded PC800 Touch Screen CNC Control
Auto Crowning & Die Rail.
EQUIPPED WITH:
PC800 Touch Screen CNC Control Auto
Crowning
Die Rail
GENERAL SPECIFICATIONS
Overall Bed Length: 192" (16')
Dist. Btwn. Housings: 174" (14'6")
Bending Capacity: 230 Tons
Stroke: 10"
Height Of Die Rail: 4.5"
Open Height Over Bed: 19.75"
Open Height Over Die Rail: 15.25"
Closed Height Over Bed: 9.5"
Closed Height Over Die Rail: 5"
Bed Width: 3.75"
Throat Depth: 8"
Ram Speed Approach: 260 IPM
Ram Speed Pressing: 1-65 IPM
Ram Speed Return: 1-290 IPM
Main Motor: 25 HP
Electrics: 460V / 3PH
Dimensions: 192" X 48" X 130" H
Weight Approx: 50,000 LBS
