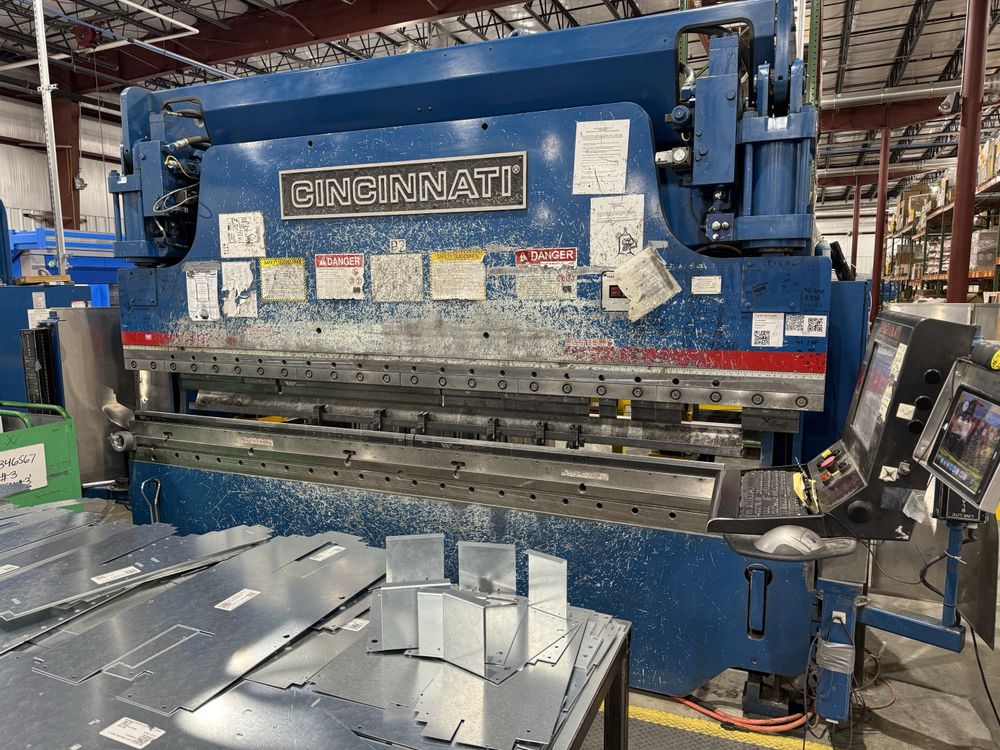

Cincinnati 90AF10 Plus Autoform 90 t

Press force: 90 t
Bending length: 12 ft
Distance between housings: 10 ft 6.5 in
Stroke: 8 in
Open height: 15 in
Closed height: 7 in
Throat depth: 12 in
Approach speed: 380 in/min
Forming speed: 1–120 in/min
Return speed: 1–270 in/min
Control: Cincinnati Autoform PC
3-axis backgauge (X1, X2, R)
Backgauge travel: 24 in
Precision ram leveling
Dual linear glass scale encoders
Off-load center compensation
Variable volume load-sensing pump
Servo hydraulic system
Link Black Max light curtains
3-position electric foot switch
Presence sensing interface
Palm button station
Interlocked construction
Manuals
Main motor: 25 HP
Power supply: 460 V / 3 Phase / 60 Hz
Machine weight: Approx. 19300 lb
Machine dimensions: Approx. 144 × 72 × 121 in
