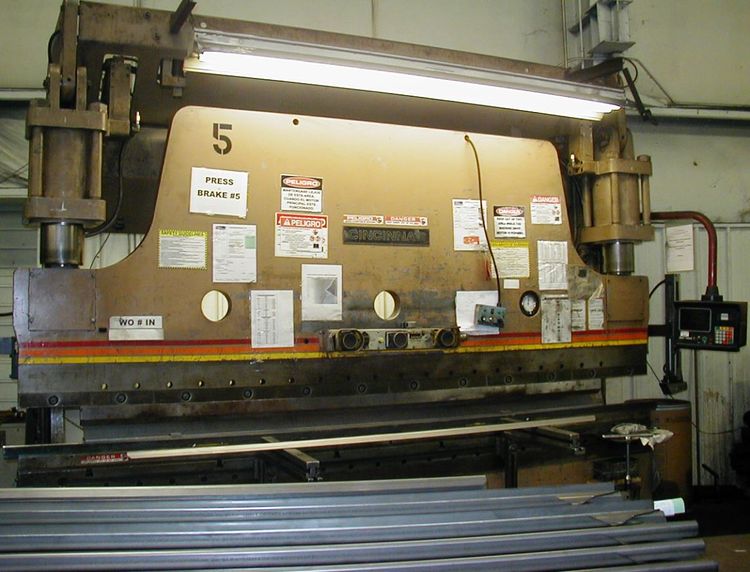

Cincinnati FM175X10, Press Brake Max. 175 TON

Ref : 1218738-3-GO
Condition : Used
Manufacturer : Cincinnati
Model : FM175X10, Press Brake
Pressure : Max. 175 TON
Year(s) : 1984
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 02 May. 2020

Brand: CINCINNATI
Model: FM175X10
Year: 1984
Press Brake

Description:
Used

Features/Specs
Capacity 175 tons
Overall length of bed and ram 12'
Distance between housings 10' 6"
Bending capacities (mild steel) 10' x 1/4"
8' x 3/8
6' x 1/2"
Open height 17"
Stroke 10"
Closed height 7"
Throat 8"
Ram speeds, High 237 IPM
Medium 62 IPM
Low 20 IPM
Motor 35 HP
Approximate overall dimensions 165" x 87" x 130" H
Approximate weight 23,000 lbs.
Floor standing

Details
Machine is equipped with Formaster controls
tonnage control, 6 position multiple depth stop
palm buttons, foot switch
Hurco autobend 2 axis backgauge and controls
