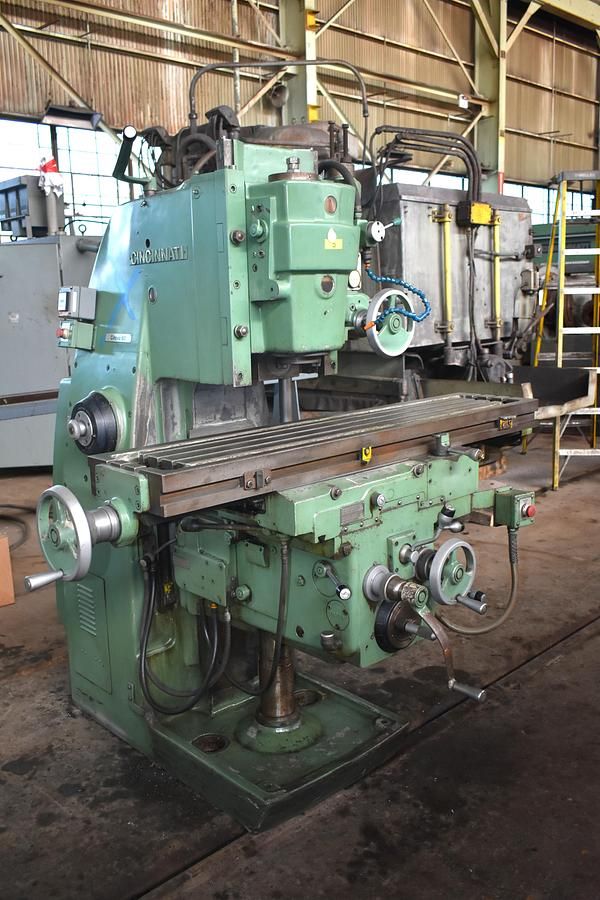

Cincinnati Milacron 205-12 Vertical 2000 RPM

X-axis travel: 28"
Y-axis travel: 10"
Z-axis travel (Knee): 14"
Z-axis travel (Spindle head): 4"
Spindle nose to table (max): 18"
Table size: 56.5" x 12"
Spindle nose diameter: 5.06"
Spindle taper: #50 NSTD
Spindle speed range: 25 – 2000 RPM
Longitudinal and cross feed range: 1/4 – 30 IPM
Vertical head feed range: 1/8 – 15 IPM
Power rapid traverse (longitudinal and cross): 150 IPM
Power rapid traverse (vertical): 75 IPM
Spindle motor power: 5 HP
Feed motor power: 1.25 HP
Electrical system: 220–440 V / 3 PH / 60 Hz
Machine floor space: 8'1" x 7'4"
Machine overall height: 7'2"
Machine weight: 5,600 lbs
Knee motor
Hour meter
Power down-feed to head
4-position vertical turret stops with Starrett gauging
Built-in coolant system
