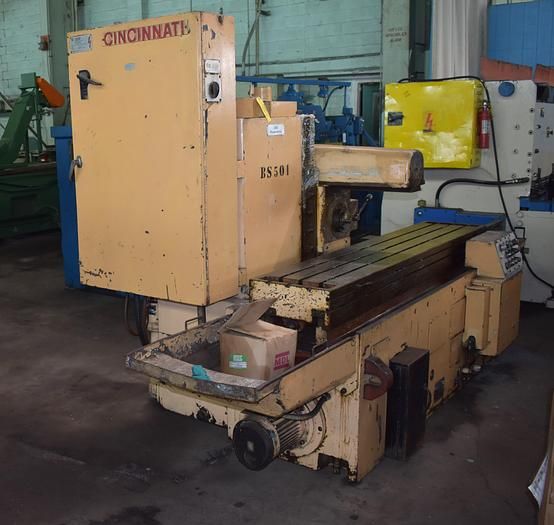

Cincinnati Milacron 310-154 Vertical 1200 RPM

X-Axis Travel: 48"
Y-Axis (Spindle-Head Vertical Travel): 14"
Z-Axis (Quill Cross Adjustment): 4"

Table Dimensions (W x L): 15" x 78"
Table Working Surface (W x L): 15" x 70.5"
Table-Center to Spindle-Carrier Face: 10.5"
Table-Center to Spindle-Face (Min): 5.5"
Table-Center to Spindle-Face (Max): 9.5"

Quill Diameter: 7.5"
Spindle Nose Diameter: 5.06"
Spindle Taper: #50 NSTD
Spindle Speeds (16): 30 – 1200 RPM
Longitudinal Table Feed Range: 0.5 – 60 IPM
Power Rapid Table Traverse: 300 IPM
Spindle Motor Power: 10 HP
Spindle Motor Speed: 1775 RPM

Feed Drive Motor Power: 3 HP
Overall Dimensions (L x W): 129" x 81"
Overall Height: 75"
Weight: 12,320 lbs
Auto Quill Retraction
Coolant System (Built-In)
