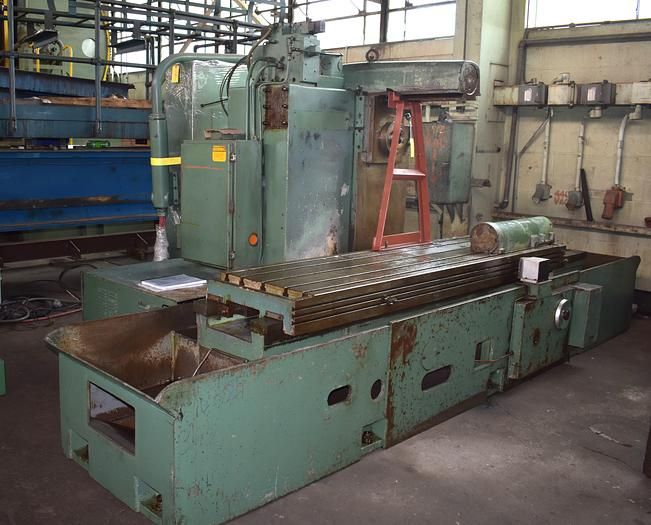

Cincinnati Milacron 425-266 HORIZONTAL-SPINDLE PRODUCTION MILL w/RISE & FALL HEAD TRAVEL - AUTOMATIC QUILL RETRACTION 1200 RPM

Table size: 26" x 106"
Table working surface: 26" x 96"
X-axis travel: 72"
Y-axis travel (Spindle-head vertical): 17.25"
Z-axis travel (Quill cross adjustment): 6"
Spindle center to table top (min): 4.75"
Spindle center to table top (max): 22"
Table center to spindle face (min): 9.5"
Table center to spindle face (max): 15.5"
Quill diameter: 8.5"
Spindle taper: #50 NSTD
Spindle speed range: 30 – 1200 RPM
Longitudinal table feed range: 1 – 100 IPM
Power rapid table traverse: 200 IPM
Spindle motor power: 30 HP
Machine floor space required: 15'6" x 8'
Machine overall height: 6'2"
Machine weight: 20,000 lbs
Rise and fall head travel
Automatic quill retraction
