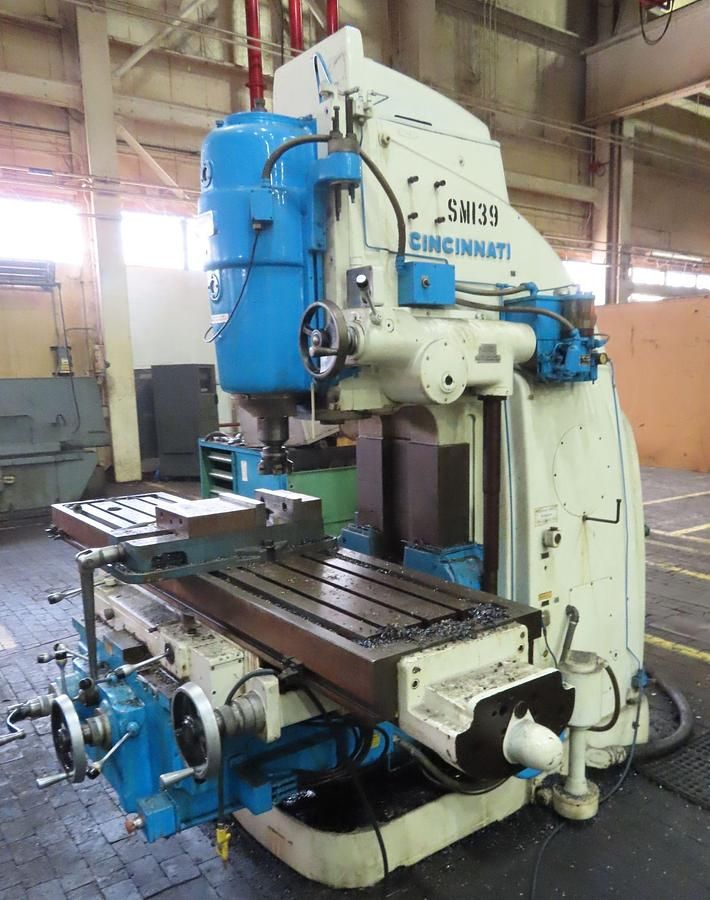

Cincinnati Milacron 450-20 Vertical 1400 RPM

X-axis travel 42 in
Y-axis travel 18 in
Z-axis travel (knee) 16 in

Spindle head vertical travel 8 in
Spindle nose to table (min) 0 in
Spindle nose to table (max) 22 in
Spindle speeds (24) 14–1400 RPM

Longitudinal and cross feeds (32) 0.375–90 IPM
Vertical head feeds (32) 0.1875–45 IPM
Vertical knee feeds (32) 0.09375–22.5 IPM

Rapid traverse, longitudinal and cross 150 IPM
Rapid traverse, vertical 37.5 IPM
Rapid traverse, spindle head 75 IPM

Spindle motor 50 HP
Feed motor 5 HP
Table size 20 × 86.5 in

Floor space required 12 ft 3 in × 11 ft 3 in
Overall height 8 ft 11 in
Machine weight 17700 lbs
Automatic table feed cycle
Power rapid traverse
Front and rear controls
Automatic backlash eliminator
Heavy-duty vise
Vertical turret 4-position depth stops
Built-in coolant system
