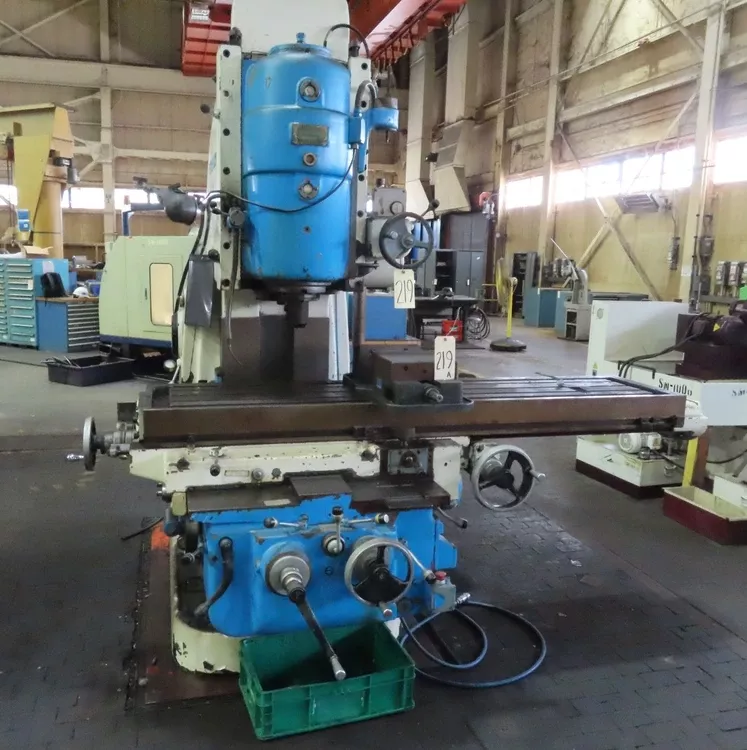

Cincinnati Milacron 450-20 Vertical 1400 RPM

Table Width: 20"
Table Length: 86.5"
Longitudinal Travel (X-Axis): 42"
Cross Travel (Y-Axis): 18"
Knee Vertical Travel (Z-Axis): 16"
Spindle-Head Vertical Travel (Z-Axis): 8"
Spindle-Nose to Table, Minimum: 0"
Spindle-Nose to Table, Maximum: 22"
Spindle Speeds: 14 to 1400 RPM
Longitudinal and Cross Feeds: 3/8 to 90 IPM
Vertical Head Feeds: 3/16 to 45 IPM
Vertical Knee Feeds: 3/32 to 22.5 IPM
Power Rapid Traverse, Long & Cross: 150 IPM
Power Rapid Traverse, Vertical: 37.5 IPM
Power Rapid Traverse, Spindle Head: 75 IPM
Spindle Motor: 50 HP
Feed Motor: 5 HP
Floor Space Required, W x D: 12'3" x 11'3"
Overall Height: 8'11"
Weight: 17,700 lbs

Features / Equipment
Motor On Knee - Automatic Table Feed Cycle
Power Rapid Traverse
Front & Rear Controls
Automatic Backlash Eliminator
Heavy-Duty Vise
Vertical Turret Depth Stops (4-Position)
Coolant System (Built-In)
