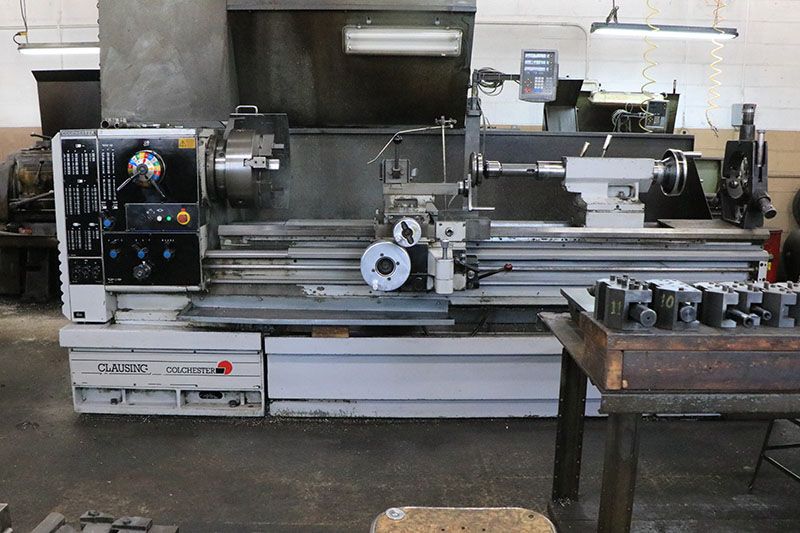

Clausing Colchester Engine Lathe 1,400 RPM -21"

Swing over bed 21"
Swing in removable gap 32"
Swing over cross slide 14-1/2"
Distance between centers 80"
Spindle nose Camlock D1-11"
Hole through spindle 3-9/16"
Spindle speed range 18 - 1,400 RPM
English threading range 2 - 72 TPI
Metric threading range 0.4 - 14 mm
Longitudinal feed range 0.002" - 0.032" IPR
Cross feed range 0.001" - 0.016" IPR
Tailstock spindle taper #5 MT
Tailstock spindle travel 8-1/2"
Approx dimensions 138"L x 42"W x 52"H
Approx weight 7,000 lbs
Inch/metric threading
12" 3-jaw chuck
NEWALL DP7 two axis digital readout
FIMS quick change toolpost with holders
Steady rest
Center for tailstock
Center sleeve for headstock
Micrometer carriage stop
Coolant system with removable chip pan
Hardened bed ways
12.5 HP main drive motor
