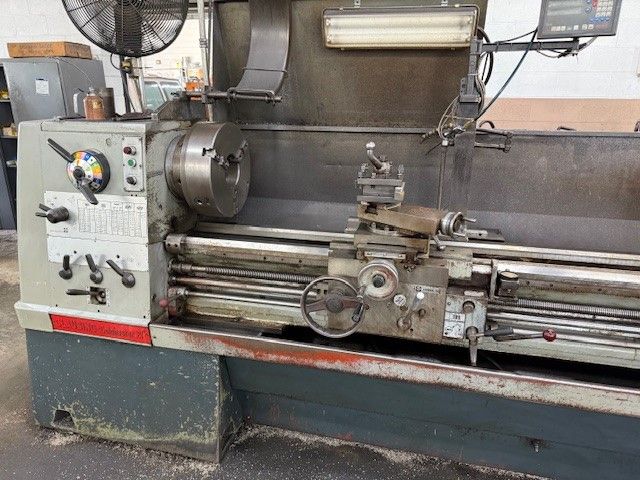

Clausing Colchester Engine Lathe 1,400 rpm 8118 21" x 120"

Swing over bed 21″
Swing over cross slide 14.5″
Distance between centers 120″
Spindle nose camlock D1-11″
Hole through spindle 3-9/16″
Spindle speed range (16) 18–1,400 rpm
English threading range (38) 2–72 TPI
Metric threading range (40) 0.4–14 mm
Longitudinal feed range (45) 0.002″–0.032″ IPR
Cross feed range (45) 0.001″–0.016″ IPR
Tailstock spindle taper #5 MT
Tailstock spindle travel 8.5″
Approx dimensions 178″L × 42″W × 52″H
Approx weight 7,000 lbs
Inch/metric threading
Newall two-axis digital readout
Taper turning attachment
3-jaw chuck
