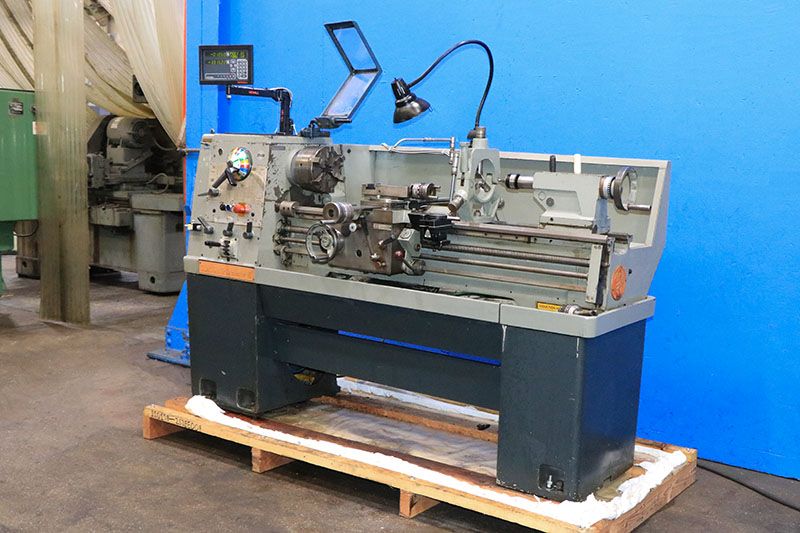

Clausing Colchester Engine Lathe 2,500 RPM 8015

Swing over bedways 13"
Swing over cross slide 8-1/4"
Hole through spindle 1-21/32"
Distance between centers 40"
Spindle nose D1-4" CAMLOCK
Spindle speed range 30 - 2,500 RPM
English threading range 2 - 72 TPI
Metric threading range 0.2 - 14 mm
Longitudinal feed range 0.0015" - 0.040" IPR
Cross feed range 0.00075" - 0.020" IPR
Tailstock spindle taper #4MT
Tailstock spindle travel 6-1/8"
Approximate floor space 78"L x 32"W x 49"H
Approximate weight 2,750 lbs
Inch/metric threading
Newall two axis digital readout
8" 6-jaw chuck
Thread dial indicator
Coolant system
Hardened bed ways
5 HP main motor
