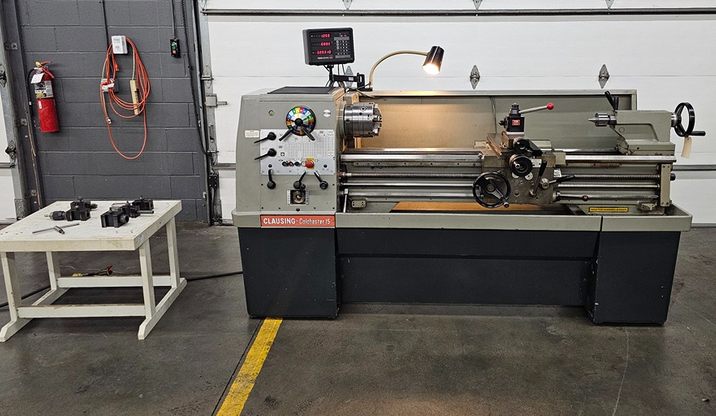

Clausing Colchester Engine Lathe 2000 rpm (16) 15″ x 50″

Swing over bed 15-1/4 in
Swing over cross slide 9-1/2 in
Cross slide travel 9-1/4 in
Compound rest travel 4-3/4 in
Distance between centers 50 in
Spindle nose 6 in D1 Camlock
Hole through spindle 2-3/16 in
Spindle center MT No. 4
Spindle speeds 25–2000 rpm (16)
Threads (U.S. standard) 2–72 TPI (45)
Threads (metric) 0.2–14 (39)
Bed width 11 in
Tailstock spindle center MT No. 4
Tailstock spindle travel 6-1/8 in
Motor power 7.5 HP
Voltage 220 V 3 Phase
Chuck 8 in 6 Jaw Bison “Scroll Unison”
Tool post Dorian Quick Change
Tool holders 6 Quick Change
Control Anilam 2 Axis DRO
Splash guard included
Chip pan included
Coolant pump included
Tailstock included
Work light included
Machine dimensions 102 x 40 x 54 in
Machine weight 3200 lb
