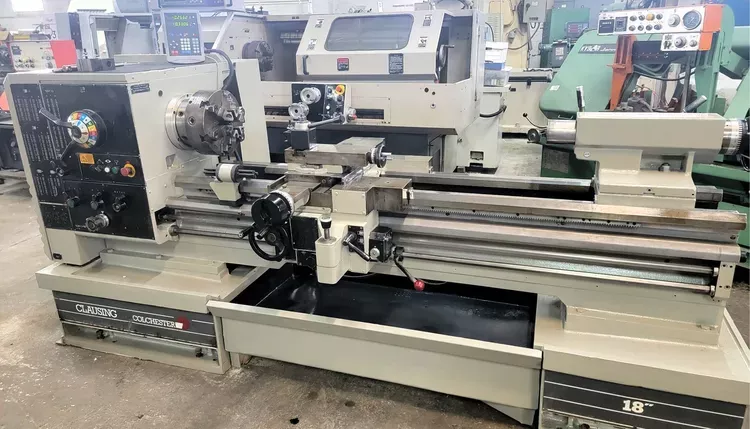

Clausing Colchester Engine Lathe 1600 rpm Mascot GH 600 Series

Ref : 2738082-3-GO
Condition : Used
Manufacturer : Clausing Colchester
Type : Engine Lathe
Spindle Speed : 1600 rpm
Model : Mascot GH 600 Series
Year(s) : 1995
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed: 18"
Swing over cross slide: 10.75"
Gap bed swing: approx. 32"
Distance between centers: 60"
Hole through spindle: 3"
Spindle nose: D1-11" camlock
Spindle speeds geared ranges: 20–1600 rpm
Tailstock spindle center taper: #6 Morse
Tailstock quill diameter: 3 9/16"
Tailstock spindle travel: 6.5"
Bed width: 15 3/4"
Longitudinal feed range: 0.0016"–0.11" IPR
Cross feed range: half of longitudinal feed
English threading range (72): 2–84 TPI
Metric threading range (51): 0.2–14 mm
Approximate dimensions: 122"L x 52"W x 55"H
Approximate weight: 6800 lbs
Induction hardened and precision ground bedways
Comprehensive range of inch/metric threads
Newall two-axis digital readout C80
12" diameter 6-jaw set true Buck chuck
Quick change toolpost with holders Aloris type
Threading dial
Turret bed stop
Heavy-duty live center with reduction sleeve from No. 6 MT
Removable chip pan
12.5 hp spindle drive motor wired 460 V 3-phase
