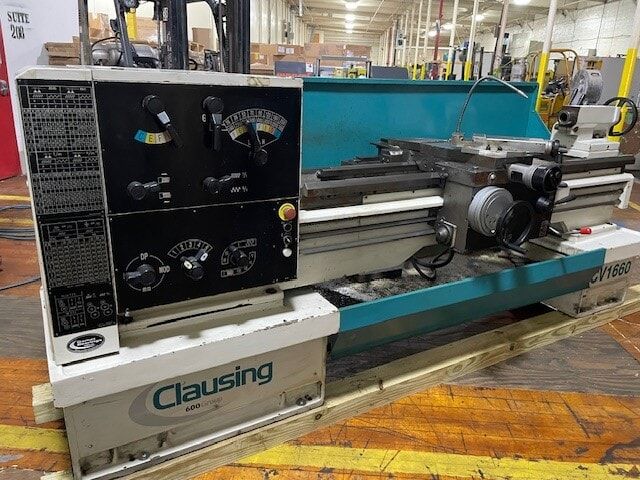

Clausing Engine Lathe 1700 RPM (16 steps) CV-1660

Clausing CV-1660
2006

Swing over bed 16"
Swing in removable gap 27.5"
Swing over cross slide 10"
Distance between centers 60"
Spindle bore 4.125"
Spindle bearings Gamet
Spindle nose D1-8 Camlock
Spindle speeds 26 to 1700 RPM (16 steps)
Longitudinal feed range 0.044 to 1.48 mm/rev
Cross feed range 0.022 to 0.74 mm/rev
Inch thread range 7/16 to 80 TPI (47 threads)
Metric thread range 0.35 to 80 mm
Cross slide travel 13.75"
Longitudinal rapid traverse 5 mm/min
Cross rapid traverse 2.5 mm/min
Tailstock taper #5 MT
Tailstock quill travel 6"
3-jaw chuck 12" with 2-piece reversible hard top jaws
Telescopic taper attachment
Threading dial
Universal inch/metric gearbox
Rapid traverse on carriage and cross slide
Full-length rear splash guard
Coolant system
Main motor 10 HP, 3 phase, 60 Hz, 230/460V (wired for 460V)
Coolant motor 1/5 HP
Floor space 123" x 46" x 50"
Machine weight approx. 5500 lbs
