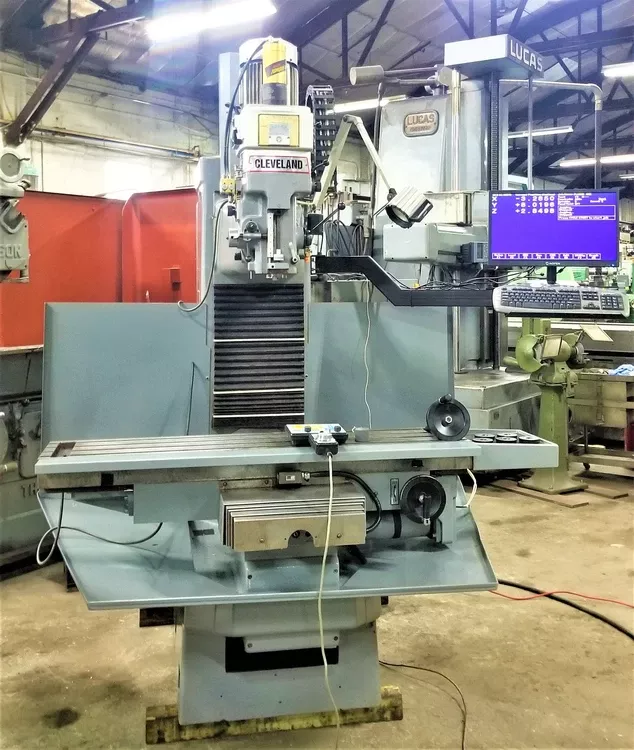

Cleveland B6FC Vertical 4000 RPM

CLEVELAND B6FC
Year: 2003

Table Size 13" x 58"
Max Table Load (Center) 1,800 lbs
X Travel 40"
Y Travel 22"
Z Travel 20"
Quill Travel 6"
Spindle Nose to Table 3-3/8" to 25-3/8"
Spindle Center to Column 23"
Spindle Taper NST #40
Spindle Speed 0–4,000 RPM (2-speed with Hi/Low shifter)
Spindle Motor 6 HP, 3-phase, 220V
Spindle Drive Motor DC Servo
Coolant Pump Motor 1/5 HP
Rapid Feed 160 IPM
Cutting Feed 120 IPM
Machine Weight 5,200 lbs
Floor Space 120" x 68" x 100"
Control CNC (CENTROID M39)

Centroid M39 Control with Mastercam Level 1 Installed
32-bit PC-Based DSP Technology
600 Blocks per Second Processing Speed
600+ MB Program Storage
No Pause High-Speed 3D Contouring
3-Axis Simultaneous Control
Canned Drilling Cycles
Canned Cycles (Facing, Rectangular & Circular Pocket)
Cutter Radius Compensation
Conversational and Shop Floor Programming
FANUC-Style G & M Code
3D Toolpath Graphics
Math Help
Teach Mode
Coolant Function Keys
RS-232, Mouse, and Parallel Ports
Floppy Drive
Optional Probing Cycles
Optional Digitizing

ISO 9002 Quality Assurance
Class 7 Spindle Bearings
Hardened & Ground Table with Center T-Slot
Hardened & Ground Box Ways with Turcite-B Coating
Meehanite Cast Construction
Safety Handwheel
Standard Way Covers
Super Wide Saddle
1-1/4" Precision Ground Ballscrews with Double Nut
Laser Compensation
Built-In Coolant System
Auto Lubrication System
Built-In Quartz Work Light
Chip Tray
