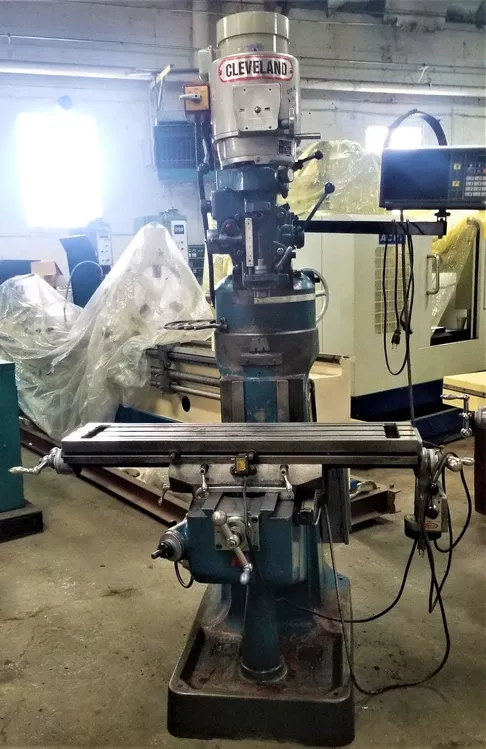

Cleveland K2V Vertical 4200 RPM

CLEVELAND K2V

Table Size 9" x 42"
Table T-Slots 0.63" x 3
X Travel 37.25"
Y Travel 12.75"
Z Travel 17"
Quill Travel 4.875"
Spindle Nose to Table 2.375" to 19.25"
Spindle Center to Column 4.5" to 19.75"
Ram Travel 16"
Swivel (Left/Right) 90°
Head Tilt (Front/Back) ±45°
Over Ram Travel 360°
Spindle Taper R8
Spindle Speed Low: 70–500 RPM
Spindle Speed High: 600–4200 RPM
Quill Diameter 3.375"
Quill Feed Rates 0.002", 0.004", 0.006"
Spindle Motor 3 HP, 3-phase, 220/440 V
Floor Space 88" x 67" x 84"
Machine Weight 2,400 lbs

ISO 9001 Quality Certified
Hardened and Ground Work Table
Hardened and Ground X/Y Slideways
Turcite-Lined X and Y Axis
Meehanite Cast Construction
Heavy Duty Dovetail Slideways on X/Y/Z
Center Ground T-Slot
Anti-Rust Chrome Quill
Precision APEC Class 7 (P4) Spindle Bearing
Double Lock on Ram, Table Saddle, and Knee
Precision Ground Lead Screw with Double Brass Nut
Variable Speed Drive
Slideway Covers (Front and Back)
One-Shot Lubrication System
Servo Table Power Feed
Mitutoyo 2-Axis Digital Readout (Y Axis Scale Only)
Collet Rack
4" Factory-Installed Riser
