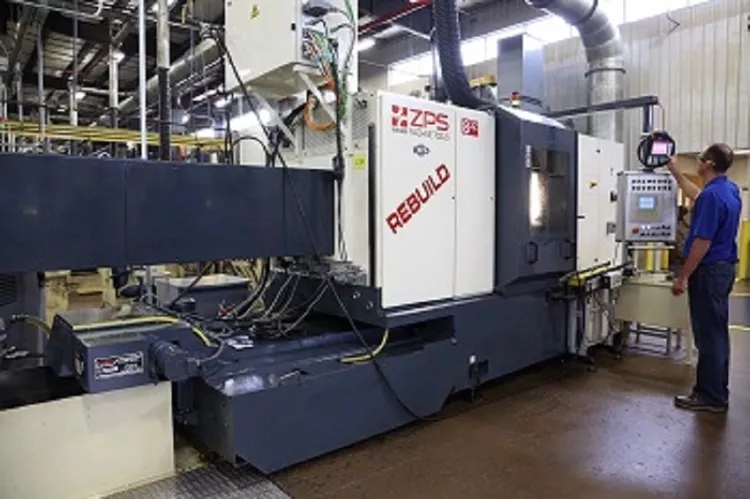

CNC CONTROL 3,750 RPM EUROTURN ZPS 8/32 2 Axis

Round bar capacity 32 mm
Hex bar capacity 27 mm
Maximum bar length 4,000 mm
Maximum feed out 125 mm
Number of spindles 8
Spindle speed 270-3,750 RPM
Index time 1 second
Number of longitudinal slides 8
Longitudinal stroke range 45-120 mm
Working stroke range longitudinal 0-110 mm
Number of cross slides 8

Cross slides total stroke (1,2) 26-55 mm
Cross slides total stroke (3,4,7,8) 18-45 mm
Cross slides total stroke (5,6) 18-45 mm
Cross slides working stroke (1,2) 0-50 mm
Cross slides working stroke (3,4,7,8) 0-41 mm
Cross slides working stroke (5,6) 0-50 mm
Cross slides adjustability 25 mm
Number of compound slides 4
Compound slides total longitudinal stroke 35-70 mm
Compound slides working longitudinal stroke 0-64 mm
Main controlled motor Asynchronous Siemens
Main motor output 28 kW
Main motor speed 2,000 RPM
Nominal output 9.4 kW
Nominal base speed 1,500 RPM
Nominal maximum speed 6,000 RPM
Nominal torque 47.7 Nm
Control Siemens S7
Hydraulic electric motor output 1.5 kW
Hydraulic electric motor speed 1,692 RPM
Operational power input 51/61 KW/KVA
Height of spindle drum axis over floor 1,320 mm
Total length with stock carriage 6,336 mm
Total length without stock carriage 3,463 mm
Machine height 2,497 mm
Machine width 1,932 mm
Machine weight without carriage & conveyor 11,320 kg
Stock carriage weight 355 kg
Stock carriage guard weight 75 kg
Stock carriage stand weight 50 kg
Equipped with Siemens S7 control
Equipped with chip conveyor
Feed & collet clamping device at station 8
Bar tubes & stand
Pick-up spindle with collet cleaning device
32 mm pick-up spindle collet
Hydraulic slide for back drilling at stations 4-8
Electromagnetic threading clutches
Spring loaded tailstock
3 knee turner
4 hinged type bracket drill holder
Skive holder
4 flat form turret modular toolholder
4 dovetail turret modular toolholder
6 turret modular toolholder with micrometer adjustments
2 blade toolholder at station 8 with micrometer adjustments
14 additional standard cams
Parts catcher
Parts conveyor outside machine
5th position CNC slide
3 position CNC back working slide
Heavy duty rotary recess
Tapping spindle
