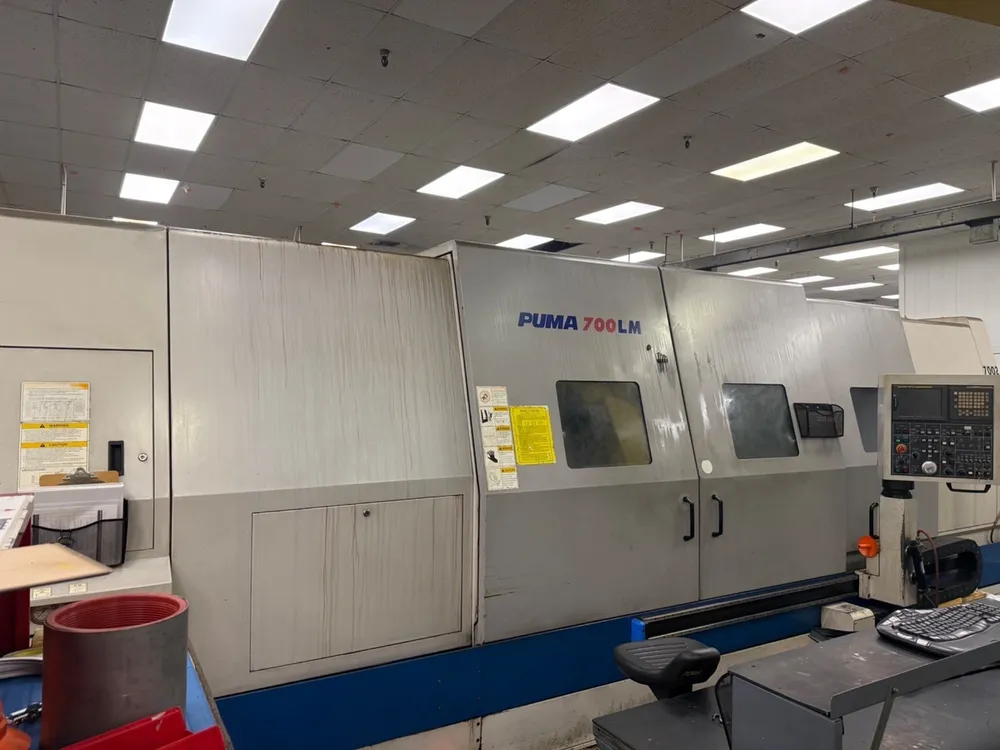

Doosan FANUC 21i-TB CNC 1,500 RPM PUMA 700LM 2 Axis

X-Axis Travel: 18.5"
Z-Axis Travel: 127.36"
Rapid Traverse X: 400 in/min
Rapid Traverse Z: 630 in/min
C-Axis: 0.001°
Control: FANUC 21i-TB CNC
Chip Conveyor
Hydraulic Steady Rest
Programmable Tailstock
Bar Capacity: 6.5"
Swing Over Bed: 40.5"
Turning Diameter: 31.5"
Machining Length: 126"
Distance Between Centers: 141.7"
Spindle Speed: 1,500 RPM
Spindle Motor: 60 HP
Spindle Nose: A2-15
Spindle Bore: 7.12"
Sub Spindle: No
Live Tooling: Yes
Rotary Tool Speed: 3,000 RPM
Rotary Tool Motor: 15 HP
Chuck Size: 24"
Turret: 12 Stations
Tailstock: Yes
Tailstock Quill Diameter: 5.9"
Tailstock Quill Travel: 5.9"
Tailstock Travel: 124"
3 Controlled Axes
