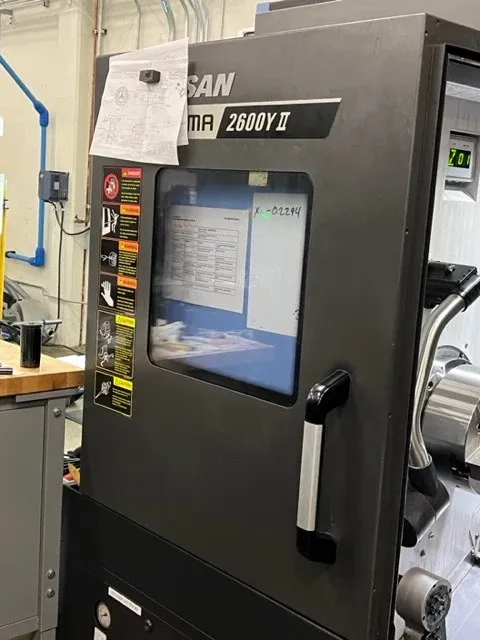

Doosan FANUC 31i CNC 3,500 RPM PUMA 2600YII 3 Axis

X-Axis Travel: 10.2"
Y-Axis Travel: 4.1"
Z-Axis Travel: 32.7"
Rapid Traverse X: 1181 ipm
Rapid Traverse Y: 393 ipm
Rapid Traverse Z: 1181 ipm
C-Axis Indexing
Control: FANUC 31i CNC
DOOSAN EZ Guide i Conversational Control
Ethernet
USB
Chip Conveyor
High-Pressure Through-Tool Coolant
Programmable Tailstock
Built-In Live Center
Auto Parts Catcher
Bar Feed Interface
Tool Presetter
Bar Capacity: 3"
Swing Over Bed: 30.7"
Turning Diameter: 14.8"
Turning Length: 29.9"
Distance Between Centers: 34"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-8
Spindle Bore: 3.4"
Rotary Tool Speed: 5,000 RPM
Rotary Tool Motor: 7.5 HP
Chuck Size: 10"
Turret: 12 Stations
Full Set of Static Tool Holders
Rotary Tool Holders
Tailstock Quill Diameter: 3.9"
Tailstock Taper: MT5
Tailstock Quill Travel: 3.9"
Tailstock Travel: 25"
Machine Weight: 13,227 lb
