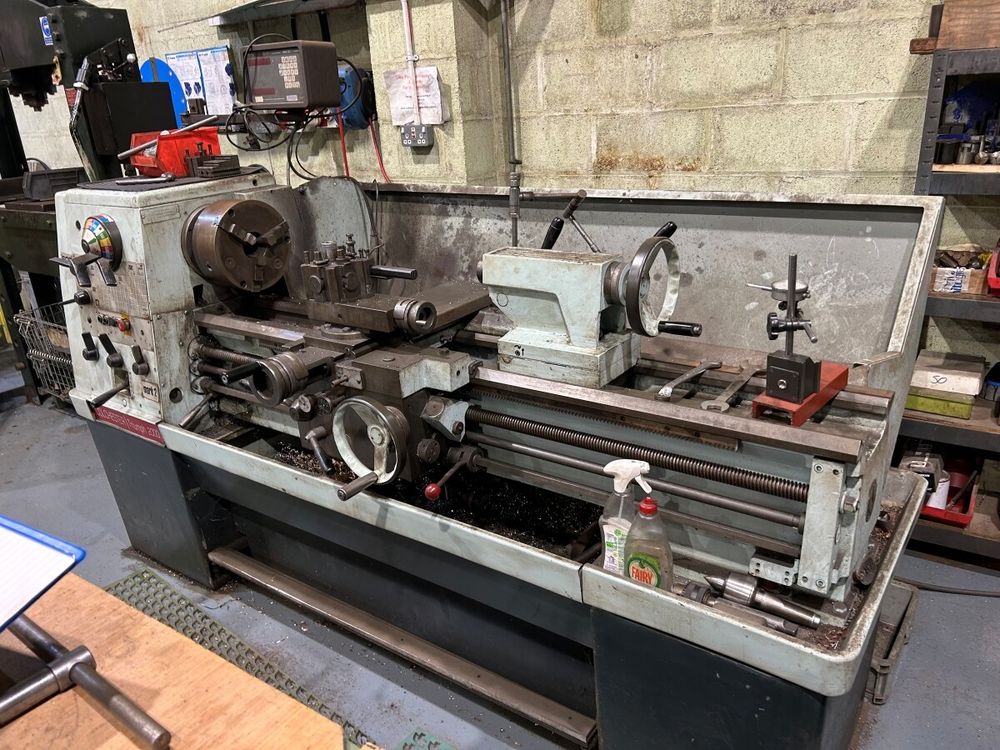

Colchester Engine Lathe 2000 rpm TRIUMPH 2000

Swing Over Bed: 390 mm
Swing Over Cross Slide: 240 mm
Swing In Gap: 560 mm
Maximum Distance Between Centres: 1270 mm
Spindle Bore: 54 mm
Spindle Speeds: 25 – 2000 rpm
Sliding Feeds: 0.04 – 1 mm/rev
Surfacing Feeds: 0.02 – 0.5 mm/rev
Screw Cutting TPI: 2 – 72
Metric Threads: 0.2 – 14 MOD 0.3 – 3.5
Diametral Pitch: 8 – 44
Tailstock Taper: 4 MT
Tailstock Quill Traverse: 160 mm
Motor Power: 7.5 HP
Electrics: 415 V, 3 Phase, 50 Hz
Chuck: 3 Jaw
Quick Change Tool Post & 2 Tool Holders
Coolant System
Rear Splash Guard
