Constant SUPEMEC P65 1520 RPM
Ref :
2724712-3-MT
Condition :
Used
Manufacturer :
Constant
Model :
SUPEMEC P65
Spindle Speed :
1520 RPM
Year(s) :
300
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

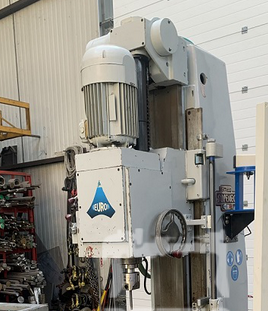

CONSTANT SUPEMEC P65
Drilling / Jig Boring Machine
Travel X 500 mm
Travel Y 300 mm
Travel Z 550 mm
Cone SA40
Spindle speed 77 to 1520 RPM
Table size 1200 mm x 420 mm
Max distance spindle nose to table 670 mm
Min distance spindle nose to table 120 mm
Throat depth 300 mm
Total width with control panel 2700 mm
Variable speed drive for X
Variable speed drive for Y
Voltage 380 V
Width 1600 mm
Depth 1800 mm
Total height 2400 mm
Weight 3 T
