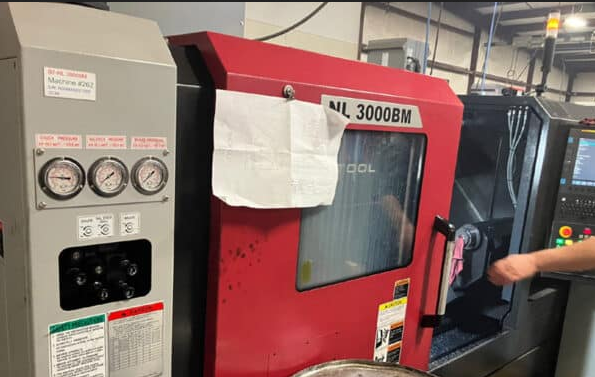

Control Fanuc Series Oi-TF Plus 2,800 RPM Smart Machine Tool NL3000BM/750 2 Axis

Swing over the bed 27.56"
Swing over the cross slide 20.08"
Maximum machining diameter 17.72"
Maximum machining length 27.56"
Chuck size 12"
Bar working diameter 4.02"
Spindle speed 2,800 RPM
Spindle motor 29.5/47 HP
Spindle nose A2-11
Spindle torque 1,202.2 ft-lbs
Spindle through hole diameter 4.53"
Rapid traverse X/Z 945/1,181 IPM
X-axis travel 10.63"
Z-axis travel 30.31"
Number of tool stations 12
Indexing time 0.2 sec
Milling tool holder type BMT65
Maximum rotary tool spindle speed 5,000 RPM
Tool presetter
Oil skimmer
Programmable tailstock (body & quill)
Barfeeder interface
Manual Guide i
Chip conveyor – side discharge
140 PSI coolant pump
