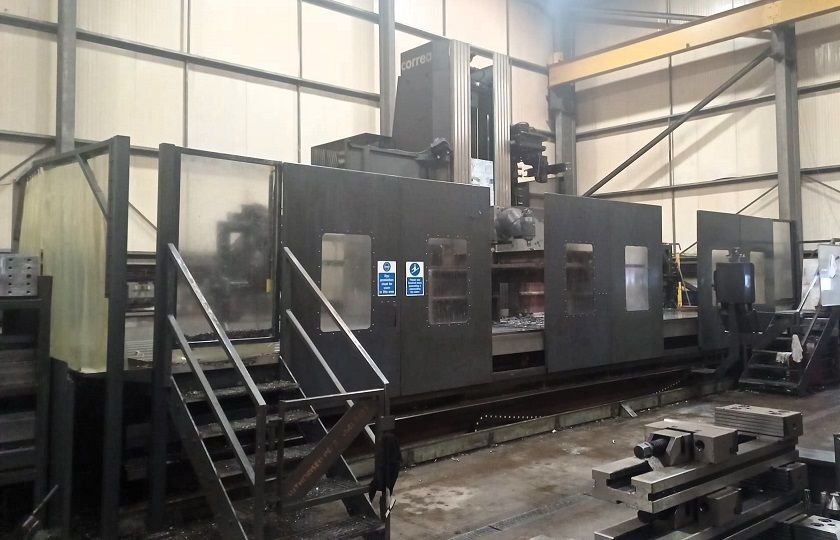

Correa AXIA 100 3000 rpm

Retrofitted: 2026
X axis travel: 10000 mm
Y axis travel: 1500 mm
Z axis travel: 2500 mm
Vertical capacity (VC): 150 - 2650 mm
Rapid feedrate (X/Y/Z): 30000 mm/min
Control: HEIDENHAIN TNC-i530
Universal auto-indexing UDG head (2.5°)
Hydraulic tool clamping system
External coolant
Internal high-pressure coolant through spindle
Spindle speed: 3000 rpm
Spindle power: 30 kW
Spindle taper: ISO 50 (DIN 69871)
Pull stud: DIN 69872
Table size: 10000 x 2250 mm
Number of T-slots: 9
T-slot size: 22 mm
Maximum table load: 15 t/m2
Automatic tool changer: ATC40
Tool magazine capacity: 30 tools
Electronic handwheel: HR-410
Front sliding doors
Perimeter wire-mesh safety fence
Rear hinge-type chip conveyor
Machine weight: 56000 kg
Machine dimensions: 16520 x 8575 x 5290 mm
Travelling column type milling machine
