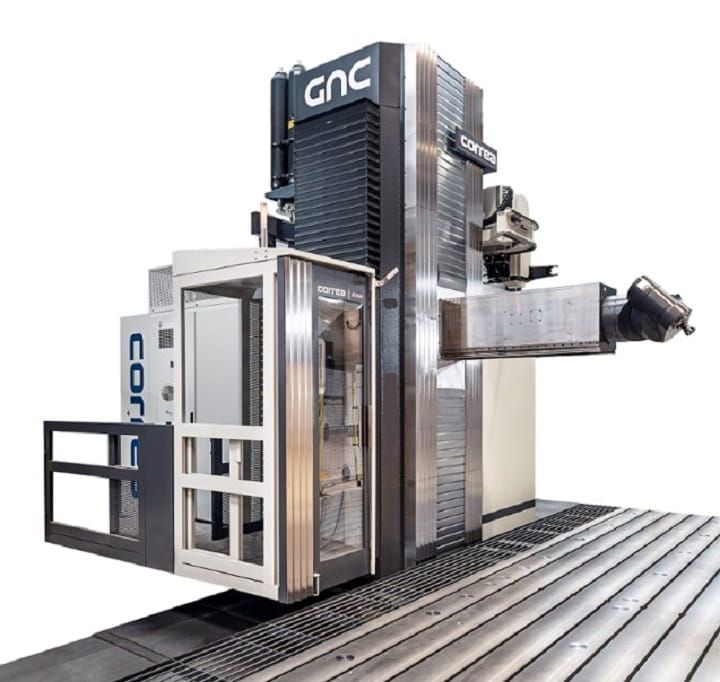

Correa AXIA 100 6000 rpm

X-axis travel: 10000 mm
Y-axis travel: 1500 mm
Z-axis travel: 2500 mm
Vertical capacity: 0 – 2500 mm
Rapid feedrate (X/Y-Z): 30000 mm/min
Control: SIEMENS 840D CNC
Head type: Universal auto-indexing UAD (0.02°)
Tool clamping system: Hydraulic
Tool taper: ISO 50 (DIN 69871)
Pull stud: DIN 69872
Spindle speed range: 20 – 6000 rpm
Spindle power: 30 kW
Automatic tool changer: 80 tools
External coolant system
High-pressure coolant through spindle
Electronic handwheel: Siemens 6FX2007-1AE14
Operator cabinet: vertically adjustable
Guarding: pendular with automatic front door and safety fence
Chip conveyor: longitudinal front
Chip conveyor: transversal
Rotary table model: DEMMELER DRLTS1800
Rotary table surface: 2400 × 1800 mm
Rotary table max load: 40 t
T-slots number: 9
T-slot size: 22 mm
Rotary axis: hydrostatic
Rotary table speed (S1/S6): 3.4 / 5.4 rpm
Clamping tangential torque: 175000 Nm
W-axis travel: 1500 mm
W-axis feedrate: 20000 mm/min
Guideways on W-axis: 4
Machine weight: approx. 70000 kg
Machine dimensions: 17560 × 12800 × 4270 mm
