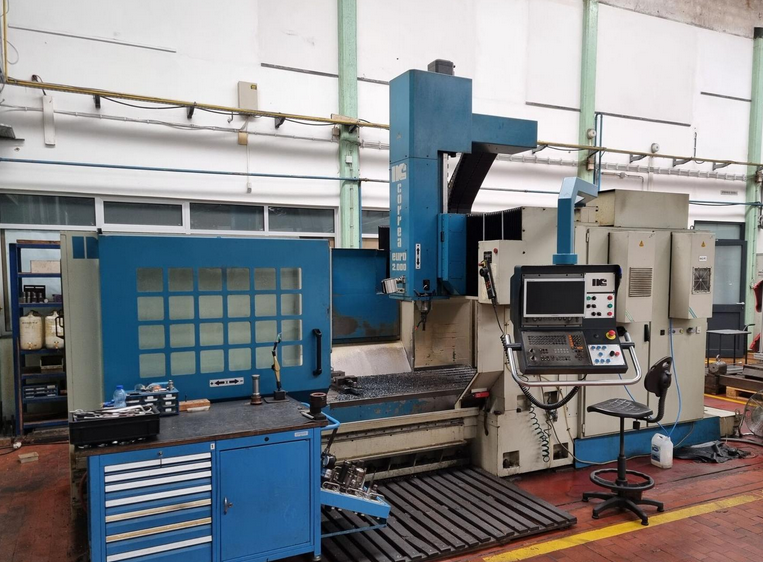

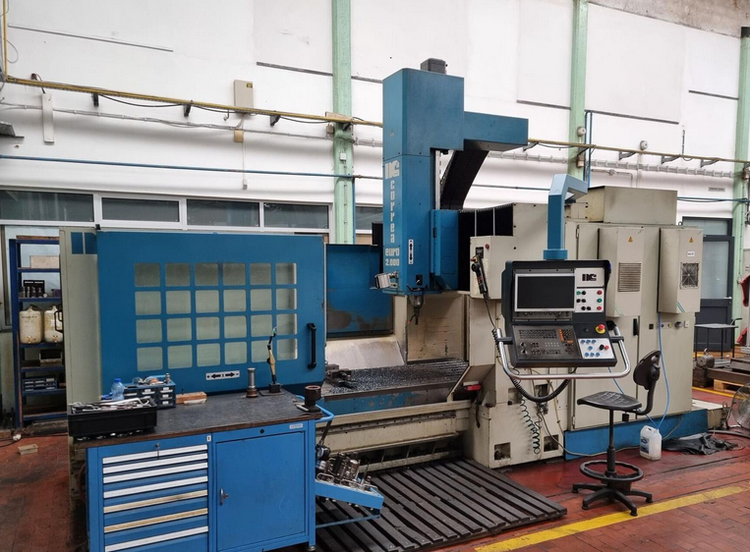

Correa EURO 10000 rpm
Ref :
2785667-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
EURO
Spindle Speed :
10000 rpm
Year(s) :
2000
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 2000 mm
Y-axis travel: 1250 mm
Z-axis travel: 650 mm
Feed rate: 2 – 20000 mm/min
Rapid traverse (X/Y/Z): 20000 mm/min
Control: HEIDENHAIN TNC-426
Electronic handwheel: HR-410
Table size: 2000 × 1000 mm
T-slots: 8 × 22 mm
Distance between T-slots: 125 mm
Max table load: 5000 kg
Spindle taper: ISO 40
Spindle speed: 20 – 10000 rpm
Spindle power: 25 kW
Tool changer: 24 positions
Coolant: through spindle
Chip conveyor: 2 longitudinal
Chip conveyor: 1 transversal
Machine weight: approx. 14000 kg
Machine dimensions: 6500 × 3728 × 4000 mm
