1/1

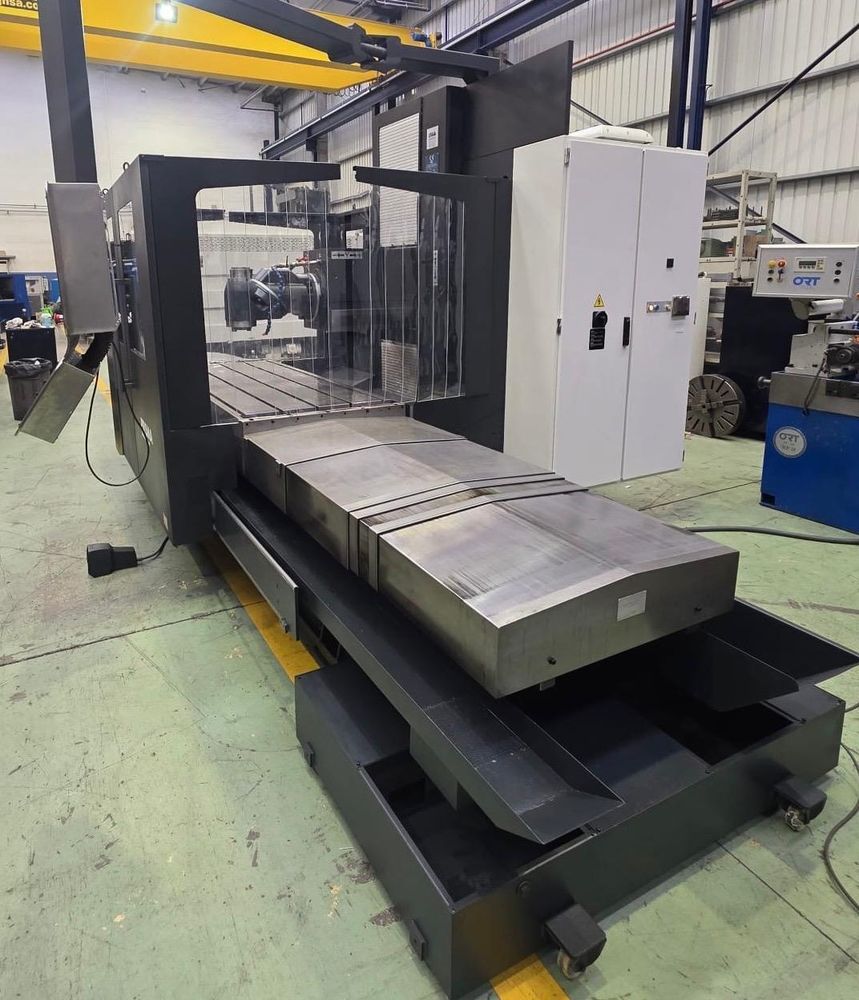

Correa PRISMA-20 3000 rpm
Ref :
2765039-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
PRISMA-20
Spindle Speed :
3000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel 2000 mm
Y travel 1000 mm
Z travel 1000 mm
Rapid traverse X 12000 mm/min
Rapid traverse (other axis) 20000 mm/min
Control and Features
Control Heidenhain 530
Spindle Specs
Spindle speed range 550–3000 rpm
Spindle power 22 kW
Taper ISO 50
Machine Size / Weight / Equipment
Table dimensions 2000 × 900 mm
Number of T-slots 5 × 22 mm
Distance between T-slots 200 mm
Maximum table load 3500 kg
Machine weight 14 t
Fairing
Electronic handwheel
