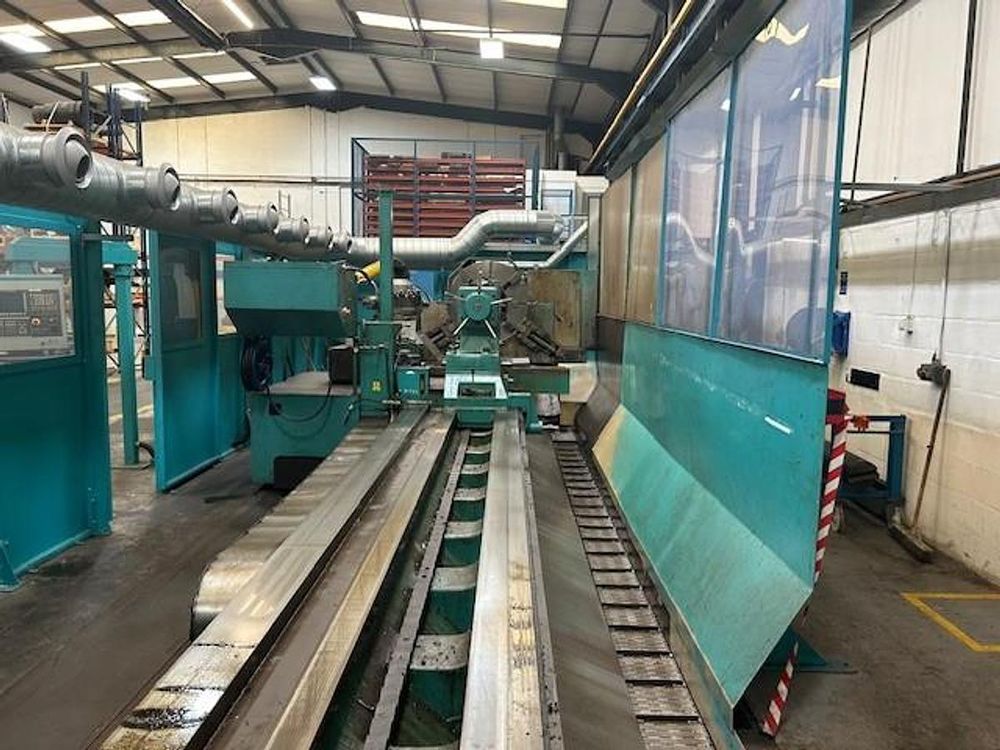

Crawford Fanuc 32i CNC control 494 rpm CRAWFORD SWIFT L10 x 7500mm 2 Axis

X-axis travel 813 mm
Z-axis travel 7620 mm
Retrofitted 2008
Reground and overhauled 2009
Maximum swing 1524 mm
Swing over bed 1524 mm
Maximum under turret 1016 mm
Distance between centers 7500 mm
Spindle speed range 1–494 rpm
42 in 4-jaw manual chuck
4-station turret with 8-position boring bar capacity
Bed length 9093 mm
Machine footprint 13411 × 3937 × 3048 mm
12 in boring bar 305 mm × 2997 mm
First 1524 mm reduced to 229 mm diameter
8 in boring bar 203 mm × 813 mm
Fits 12 in extension 2591 mm
Stepped bar 102–191 mm × 953 mm
Indexable heads 254 mm and 356 mm
Tuned bar 102 mm × 1270 mm
3 steadies including 1 hydraulic steady
2 large boring bars
3 tailstock chucks
Swarf conveyor
Perimeter guarding
