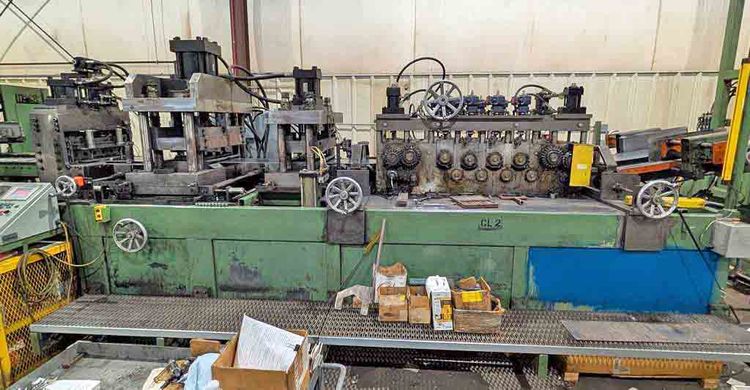

CRP Custom Rollform Products Cut-To-Length Line

Coil width: 24"
Coil weight: 7,500 lbs
Maximum thickness: 0.250"
Cut length range: 6"–240"
Line speed: 50 FPM
Line direction: Right to left

Entry coil car / upender (hydraulic cylinder operated)
Mandrel uncoiler (hydraulic expansion)
Overarm hold-down
Driven mandrel
Coil keepers
Traveling base
Peeler table (hydraulic cylinder actuated)
Adjustable side guides (entry)
9-roll straightener (5 over 4 rolls)
Drive motor with reducer
Entry and exit driven pinch rolls (hydraulic cylinder loaded)
Hydraulic punching stations (2 units)
Exit side guides
Hydraulic shear
Magnetic automatic stacker
Side discharge conveyor
Main hydraulic power unit
Operator control panel with AMS controls
Installed and running line
