Csepel FKP 326-10 1500 r/min GEAR GRINDER
Ref :
2415136-3-MT
Condition :
Used
Manufacturer :
Csepel
Model :
FKP 326-10
Spindle Speed :
1500 r/min
Short Description :
GEAR GRINDER
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
03 Feb. 2025

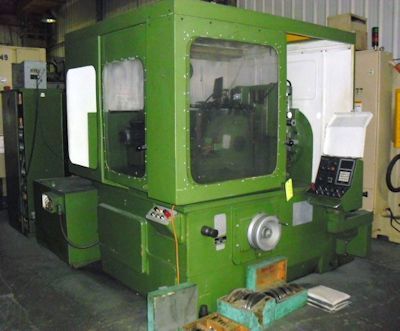

CSEPEL GEAR GRINDER
FKP 326-10
EQUIPPED WITH:
Crowning
Fassler Dresser
Wheel Mounts
Coolant System
Change Gears
Operator's Manual
Electrical Diagrams
Parts Manual
SPECIFICATIONS:
Processing Diameter: 320mm
Tooth Width: 150mm
Modulus: 0.5-6
Slide Stroke: 180mm
Number of Teeth: 10-260
Wheel Speed: 1500 r/min
Workpiece Weight: 80kg
Clamping Length: 420mm
Total Power: 44kw
Approximate Weight: 6.5 tons
Approximate Dimensions: 6 x 6 x 2.3m
