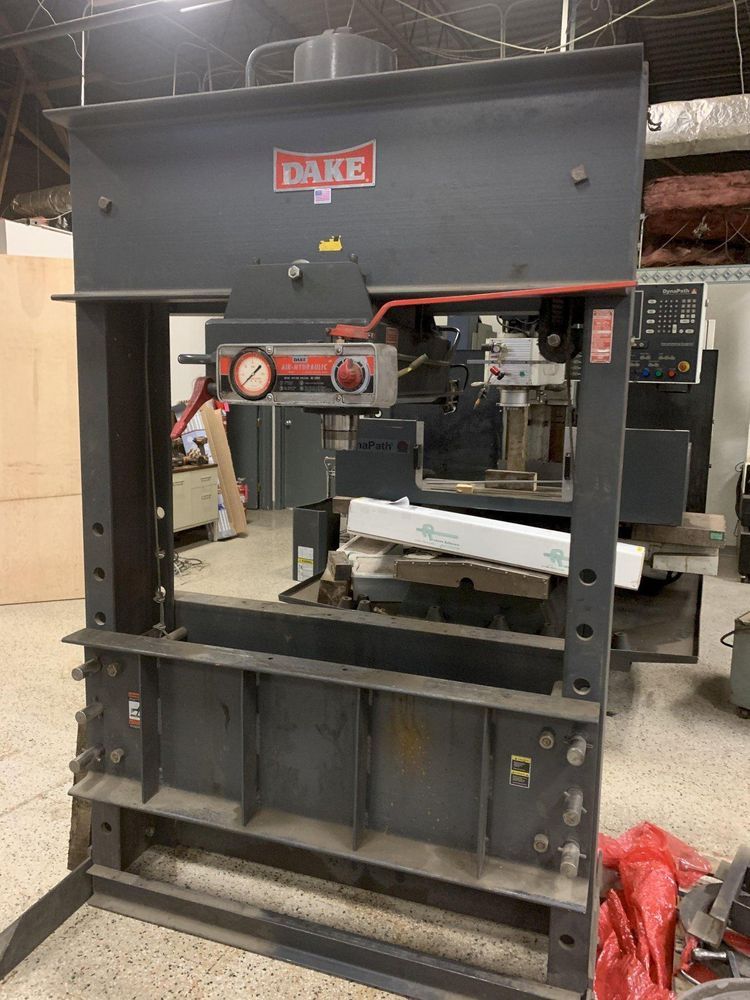

Dake 906650 150 ton

DAKE 906650
Year: 2007

Model: 6-650
Capacity: 150 tons
Ram speed advance: 25 ipm
Ram speed press: 1 ipm
Air pressure: 90–125 psi
Width between uprights: 48"
Width between table channels: 12-1/4"
Minimum ram to table: 10"
Maximum ram to table: 30"
Ram travel: 16"
Horizontal workhead travel: 21-7/8"
Base dimensions: 66" x 42"
Height: 95"
Weight: 3000 lbs

Air operation eliminates need for hand pumping
Rapid ram approach for faster production
Moveable workhead mounted on ball bearings
Adjustable table with self-locking hoist

Equipped with (2) steel table plates
Equipped with (2) steel V-blocks
Equipped with tire press rings
