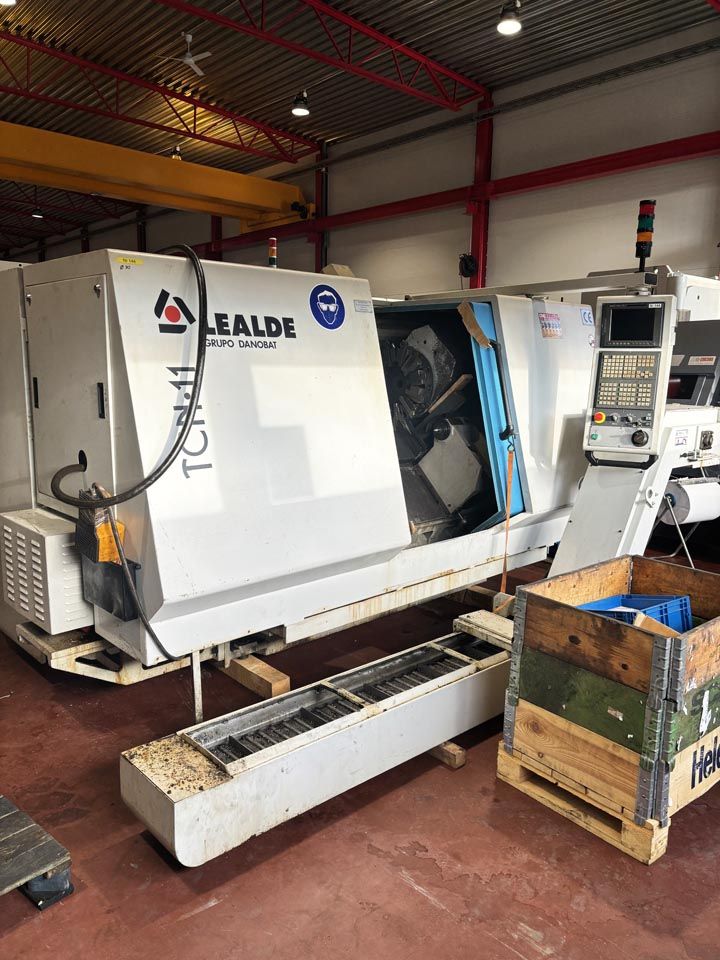

Danobat Fanuc 21i-T 3,000 RPM Laelde TCN11 2 Axis

X-Axis Travel: 200 mm
Z-Axis Travel: 835 mm
CNC Control: Fanuc 21i-T
Swing over Bed: 520 mm
Swing over Cross Slideways: 350 mm
Center Distance: 950 mm
Spindle Bore: 91 mm
Spindle Speed: 3,000 RPM
Spindle Speed Driven Tools: 6,000 RPM
Turret Stations: 12 pcs
Tool System in Turret Station: VDI40
Machine Size: 3.4 x 2.9 x 2.4 m
Machine Weight: 5,000 kg

Hydraulic 3-Jaw Chuck Röhm KFD-HS 315/3
4 pcs Straight Driven Tools VDI40
4 pcs Driven Tools 90° VDI40
13 pcs Weldon Holders VDI40 Ø12-40 mm
20 pcs Radial External Tool Holders VDI40
2 pcs Axial External Tool Holders VDI40
2 pcs Collet Chucks VDI40-ER32
2 pcs Collet Chucks VDI40-ER40
1 pcs Floating Collet Chuck VDI40-ER20
Morse Taper Sleeve Ø32/MT2
Morse Taper Sleeve MT2-MT1
2 pcs Live Centers MT4
1 pcs Center MT4
Chip Conveyor
Manuals
