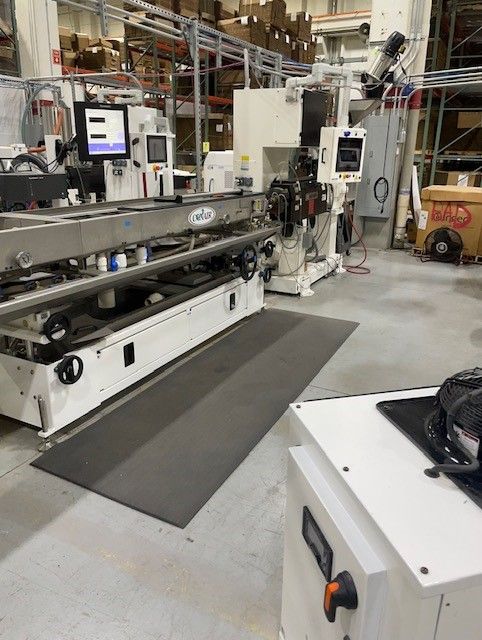

Davis Standard 2” Extrusion Line

2” Davis Standard Extrusion Line
2” Davis Standard, 24:1 L/D Ratio,3 Barrel Zones, Air
Cooled, 20 Hp AC Motor With Yaskawa AC Drive, Conair VF Volumetric Feeder,
Conair Model HTMO-12-4 HighTech Multipass Combination Vacuum/Cooling
Tank, 12’ Length x 24” Wide x 8” High. Designed For .500” Diameter Tube Capacity.
8’ Long Vacuum Chamber, 3” Wide Belt Puller, Model 3-20, Maximum Opening of 3.5”,
60 Durometer FDA White Nitrite Rubber Belt, 3.25hp Servo E Drive. Belt Speed
Range 3.2-33. FPM, And ATC-24 Automatic Transfer Coiler, Up To 20" Coil Size x 12" Width,
Dual External Cutters, Independent Servo Drive Of Each Reel. Servo Turret Shaft ,
Servo Traverse .

TPE Extruder Screw
Davis Standard Touch Panel Control,
Currently Has Tooling For PLA 3D Printer Filament Sizes
1.75mm & 2.85mm OD
Line Could Be Reproposed For Tubing
Line Was Designed To Do 300 FPM at 33 LBS/Hr
Line Comes With dx50 Conair Carousel Dryer
Conair Model EP1A03 Air Cooled Chiller
Conair Temperature Controller, Model TW-S
Line 460/3/60
