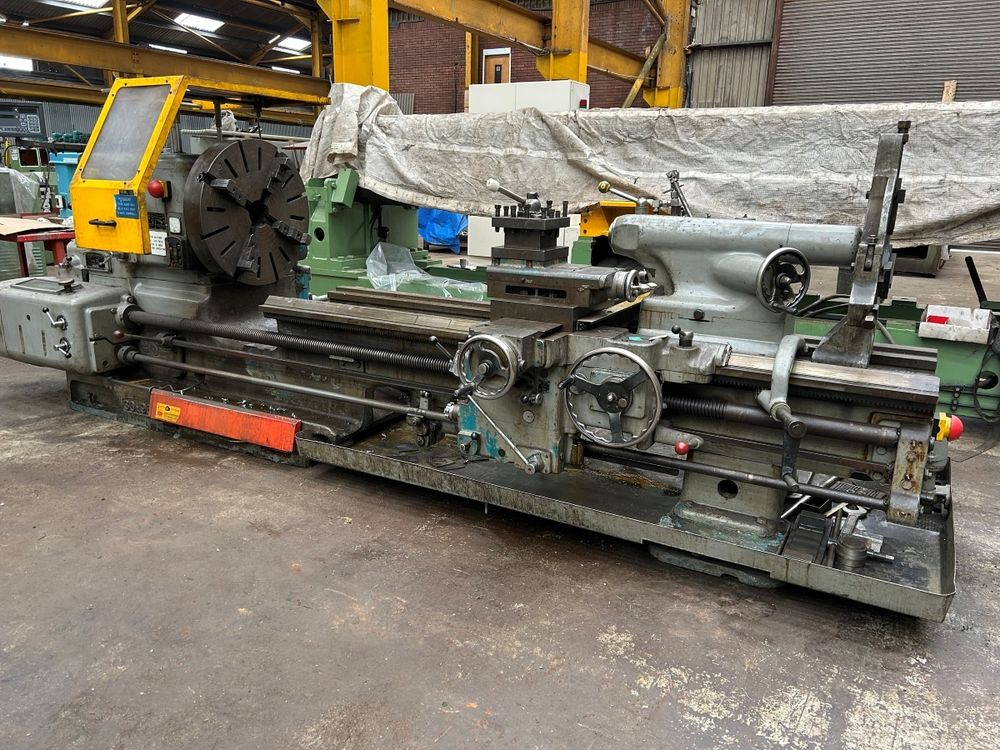

Dean Smith & Grace Engine Lathe 420 rpm 30 × 96
Ref :
2759369-3-AW
Condition :
Used
Manufacturer :
Dean Smith & Grace
Type :
Engine Lathe
Spindle Speed :
420 rpm
Model :
30 × 96
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Swing over bed: 840 mm
Swing over saddle: 530 mm
Swing in gap: 1330 mm
Maximum distance between centers: 2438 mm
Spindle speeds: 5.3–420 rpm
Spindle bore: 112 mm
Feeds, sliding: 0.002–0.1235 in/rev
Feeds, surfacing: 0.001–0.06175 in/rev
Screw cutting: 1–56 TPI
Motor: 25 HP
Electrics: 415 V, 3 ph, 50 cycles
Approximate dimensions: 5400 × 2150 × 1800 mm
Approximate weight: 6000 kg
760 mm 4-jaw chuck
300 mm 3-point fixed steady
4-way tool post
2-axis Newall DRO
Interlocked sliding chuck guard
Kick interlock spindle brake
Coolant
Light
