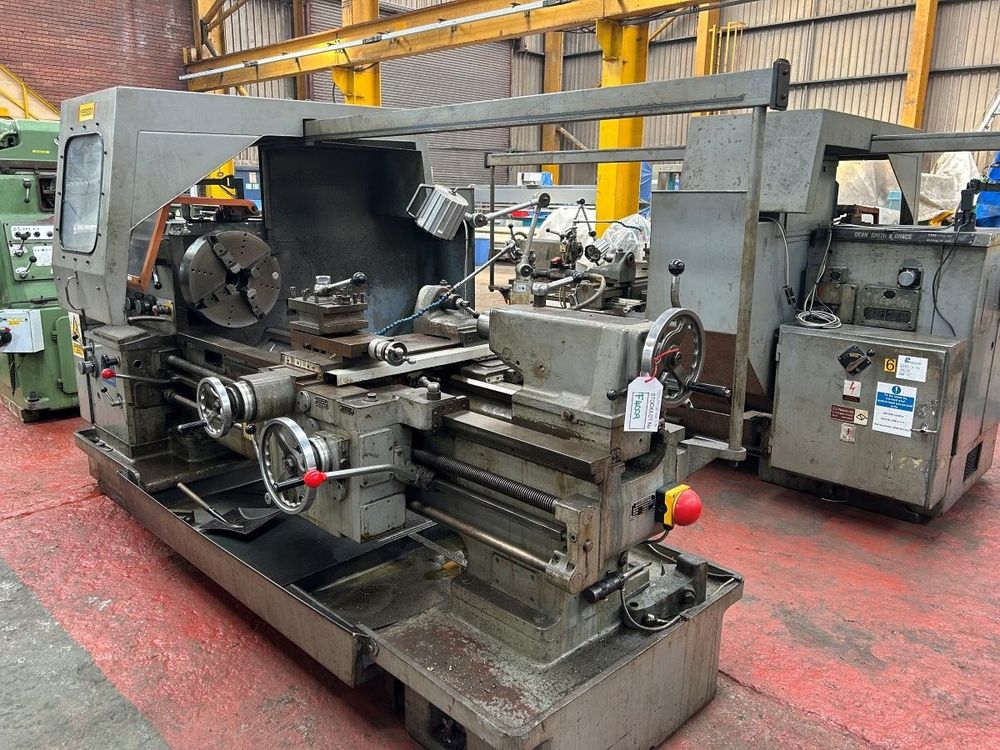

Dean Smith & Grace GAP BED CENTRE LATHE 1400rpm 1709 X 60

Ref : 2718652-3-MT

Condition : Used

Manufacturer : Dean Smith & Grace

Type : GAP BED CENTRE LATHE

Spindle Speed : 1400rpm

Model : 1709 X 60

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

DEAN SMITH & GRACE 1709 X 60

Swing Over Bed 430mm
Swing Over Saddle 230mm
Swing in Gap 660mm

Maximum Distance Between Centres 1524mm
Spindle Speeds 31.5 – 1400rpm
Spindle Bore 87mm
Feeds Sliding 0.05 – 0.2mm/rev
Surfacing 0.025 – 0.1mm/rev
Screw Cutting TPI 2 -56, MM Pitch 0.5 – 14
Motor 10HP, Electrics 415v, 3ph, 50 Cycles

Complete With 4 Jaw Chuck
Taper Turning, 2 Axis DRO,
Fixed 3 Point Steady, Cross Slide Drill Attachment
4 Way Tool Post, Sliding Guard, Chuck Guard
Rear Splash Guard

Approximate Dimensions 3300 x 1950 x 1800mm
Approximate Weight 2500kg
