Dean Smith & Grace Engine Lathe 420rpm 30 X 96 GAP BED LATHE
Ref :
2717267-3-MT
Condition :
Used
Manufacturer :
Dean Smith & Grace
Type :
Engine Lathe
Spindle Speed :
420rpm
Model :
30 X 96 GAP BED LATHE
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

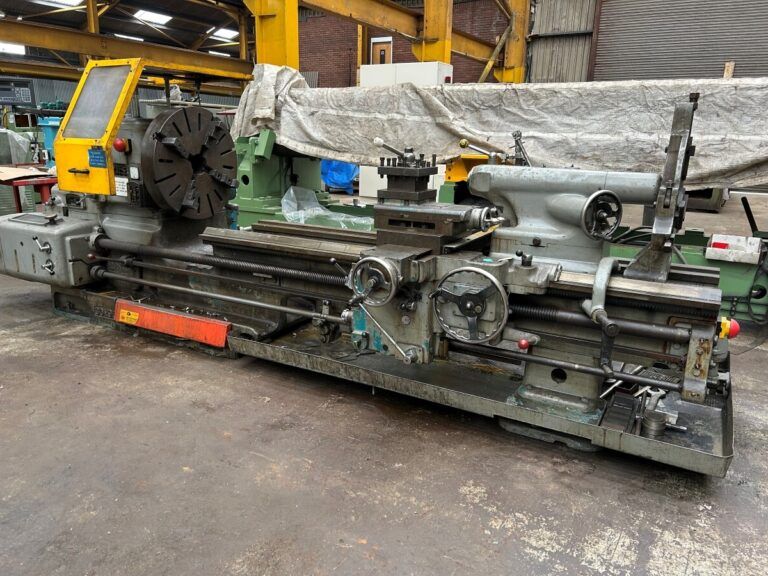

DEAN SMITH & GRACE TYPE 30 X 96 GAP BED LATHE
Swing Over Bed 840mm
Swing Over Saddle 530mm
Swing in Gap 1330mm
Maximum Distance Between Centres 2438mm
Spindle Speeds 5.3 – 420rpm
Spindle Bore 112mm, Feeds
Sliding 0.002 – 0.1235” Per Rev
Surfacing 0.001 – 0.06175” Per Rev
Screw Cutting 1 – 56 TPI, Motor 25HP
Electrics 415v, 3ph, 50 Cycles
Complete With
760mm 4 Jaw Chuck
300mm 3 Point Fixed Steady
4 Way Tool Post
2 Axis Newall DRO
Interlocked Sliding Chuck Guard
Kick Interlock Spindle Brake
Coolant, Lovo Light
Approximate Dimensions 5400 x 2150 x 1800mm
Approximate Weight 6000kg
