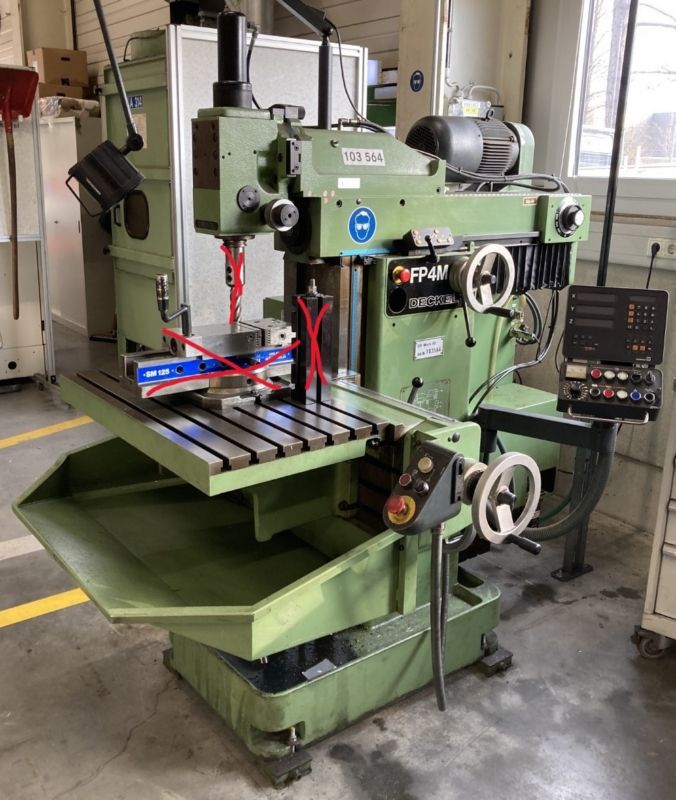

Deckel FP 4-M Aktiv-Digital 2890 rpm

X-axis travel (longitudinal): 490/500 mm
Y-axis travel (transverse): 390/400 mm
Z-axis travel (vertical): 385/400 mm
Z-axis quill stroke: 90 mm
Vertical milling head manual movement on spindle block: 150 mm
Main drive rated power (ED 100/60%): 3.7/4.4 kW
Main drive speed: 1425/2890 rpm
Number of working spindle speeds: 18
Working spindle speed range: 50–2500 rpm
Step change: 1.25
Tool holder: SK 40 (M16)
Feed drive rated power (ED 100/60%): 0.8/1.2 kW
Feed drive speed: 1420/2780 rpm
Number of feed speeds: 18
Feed speed range: 8–630 mm/min
Rapid traverse speed: 1300 mm/min
Traverse per handwheel revolution X-axis: 4.0 mm
Traverse per handwheel revolution Y-axis: 2.5 mm
Traverse per handwheel revolution Z-axis: 2.5 mm
Table clamping surface: 274 x 842 mm
Number of T-slots: 4
Permissible table load: approx. 600 kg
